| Graphics | 1 x DisplayPort 1.2; 1 x HDMI 2.1(4K@60HZ) |
| CPU's supported | Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors * |
| Chipset | AMD B550 |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors; 1 x PCIe 4.0 x16 (x16 mode); 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD B550 Chipset; 1 x PCIe 3.0 x16 (x4 mode); 1 x PCIe 3.0 x1 |
| Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports; 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support; 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support; AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10 |
| Memory type | 3rd Gen AMD Ryzen™ Processors; 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *; 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors; 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU. |

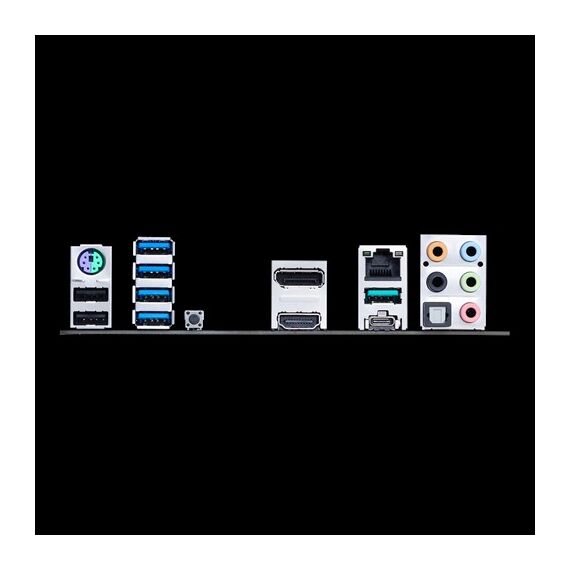

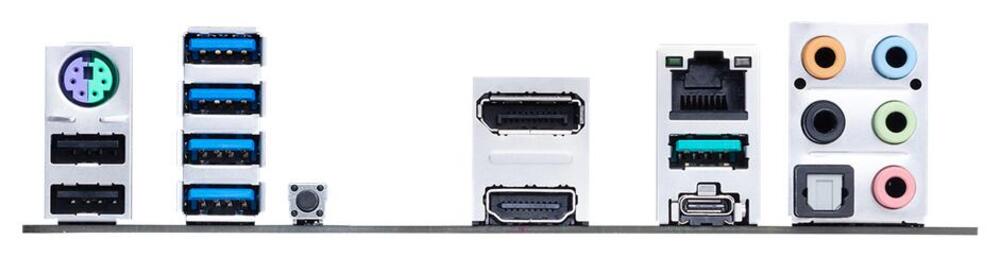

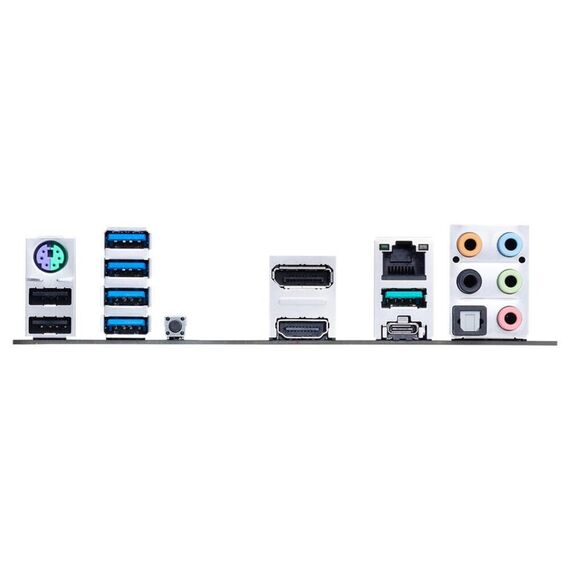

| I/O | 1 x PS/2 keyboard/mouse combo port(s); 1 x DisplayPort; 1 x HDMI; 1 x LAN (2.5G) port(s); 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®); 2 x USB 2.0; 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™); 1 x Optical S/PDIF out; 5 x Audio jack(s); 1 x BIOS FlashBack™ Button(s) |
| Connectors | 1 x CPU Fan connector(s); 1 x CPU OPT Fan connector(s); 2 x Chassis Fan connector(s); 2 x Aura RGB Strip Headers; 1 x Addressable Gen 2 header(s); 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode); 1 x SPI TPM header; 4 x SATA 6Gb/s connector(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin EATX 12V Power connectors; 1 x Front panel audio connector(s) (AAFP); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x COM port header; 1 x Speaker connector |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets.; - Optical S/PDIF out port(s) at back panel; - Audio cover; - Audio Shielding; - Dedicated audio PCB layers; - Premium Japanese audio capacitors |
| LAN | Realtek RTL8125B 2.5Gb Ethernet; TUF LANGuard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| OS | Windows® 10 64-bit |
| Warranty | 36 Months |
Производител:
ASUS
Сокет:
AM4
