| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12 ; 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1; Maximum shared memory of 16 GB |
| CPU's supported | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Chipset | AMD A520 Chipset |
| Expansion Slots | 1x PCIe 3.0 x1 slot 1; 1x PCIe x16 slot |
| Storage | AMD A520 Chipset; 4x SATA 6Gb/s ports; 1x M.2 slot (Key M) (from AMD Processor); Supports PCIe 3.0 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices |
| Memory type | 2x DDR4 memory slots, support up to 64GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory |

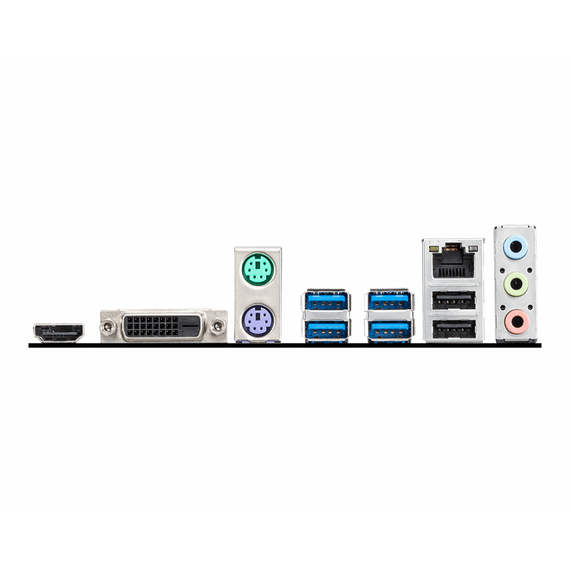

| I/O | LAN port; HDMI; DVI-D; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 1 5Gbps Type-A; USB 2.0 Ports; Audio Connectors |
| Connectors | 1x 24-pin ATX main power connector; 1x 4-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1xTPM module connector; 1x Clear CMOS jumper |
| Audio | Realtek® ALC892/ALC897 Codec; 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H Gigabit LAN controller |
| Form Factor | Micro-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Warranty | 36 Months |
Производител:
MSI
Сокет:
AM4
