| Socket | AM4 |
| Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1; 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3; Maximum shared memory of 16 GB |
| CPU's supported | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Expansion Slots | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 2x PCIe 3.0 x1 slots |
| Storage | AMD B550 Chipset; 4x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices |
| Memory type | 4x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHZ; 1DPC 2R max speed 3733 MHZ; 2DPC 1R max speed 3866 MHZ; 2DPC 2R max speed 3466 MHZ; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory; Supports un-buffered memory |

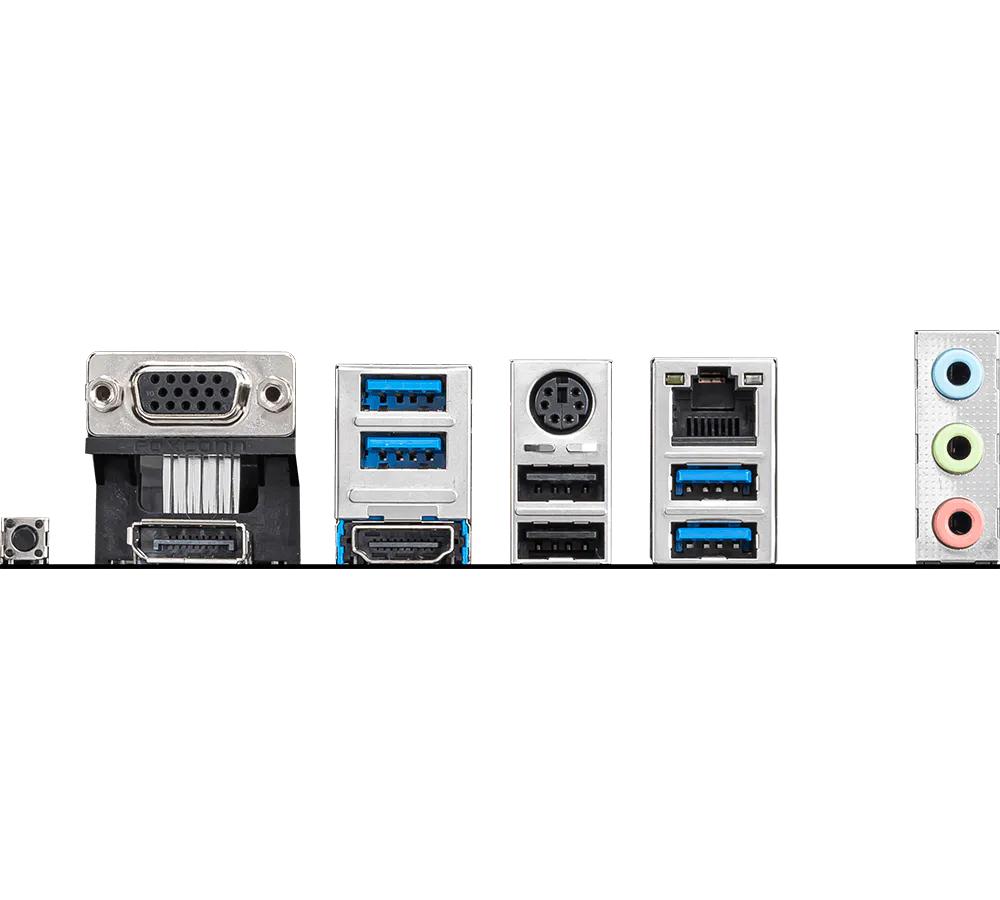

| I/O | VGA; USB 3.2 Gen 1 5Gbps Type-A; Keyboard / Mouse; LAN; Flash BIOS button; DisplayPort; HDMI; USB 2.0; USB 3.2 Gen 1 5Gbps Type-A; HD Audio Connectors |
| Connectors | 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 3x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Serial port connector; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1xTPM module connector; 1x Clear CMOS jumper |
| Audio | Realtek® ALC892/ALC897 Codec; 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® 8111HN Gigabit LAN controller |
| Form Factor | Micro-ATX Form Factor; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Warranty | 36 Months |
Производител:
MSI
