| CPU's supported | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Memory type | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Chipset | AMD A620 |
| Graphics | Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; * Support for native HDMI 2.1 TMDS compatible ports.; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; Support for up to triple-display at the same time |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support); Chipset: - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices |

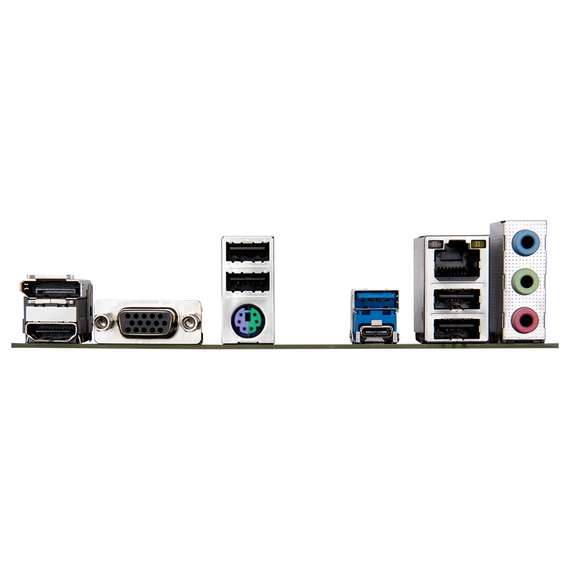

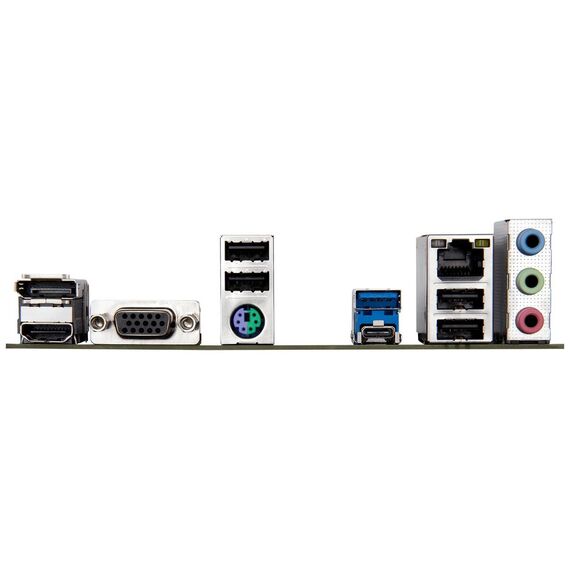

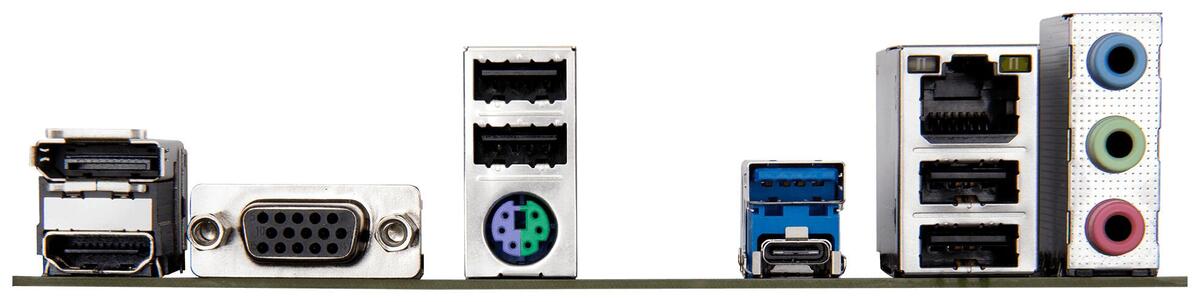

| I/O | 1 x PS/2 keyboard/mouse port; 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 port; 4 x USB 2.0/1.1 ports; 1 x HDMI port; 1 x DisplayPort; 1 x D-Sub port; 1 x RJ-45 port; 3 x audio jacks |

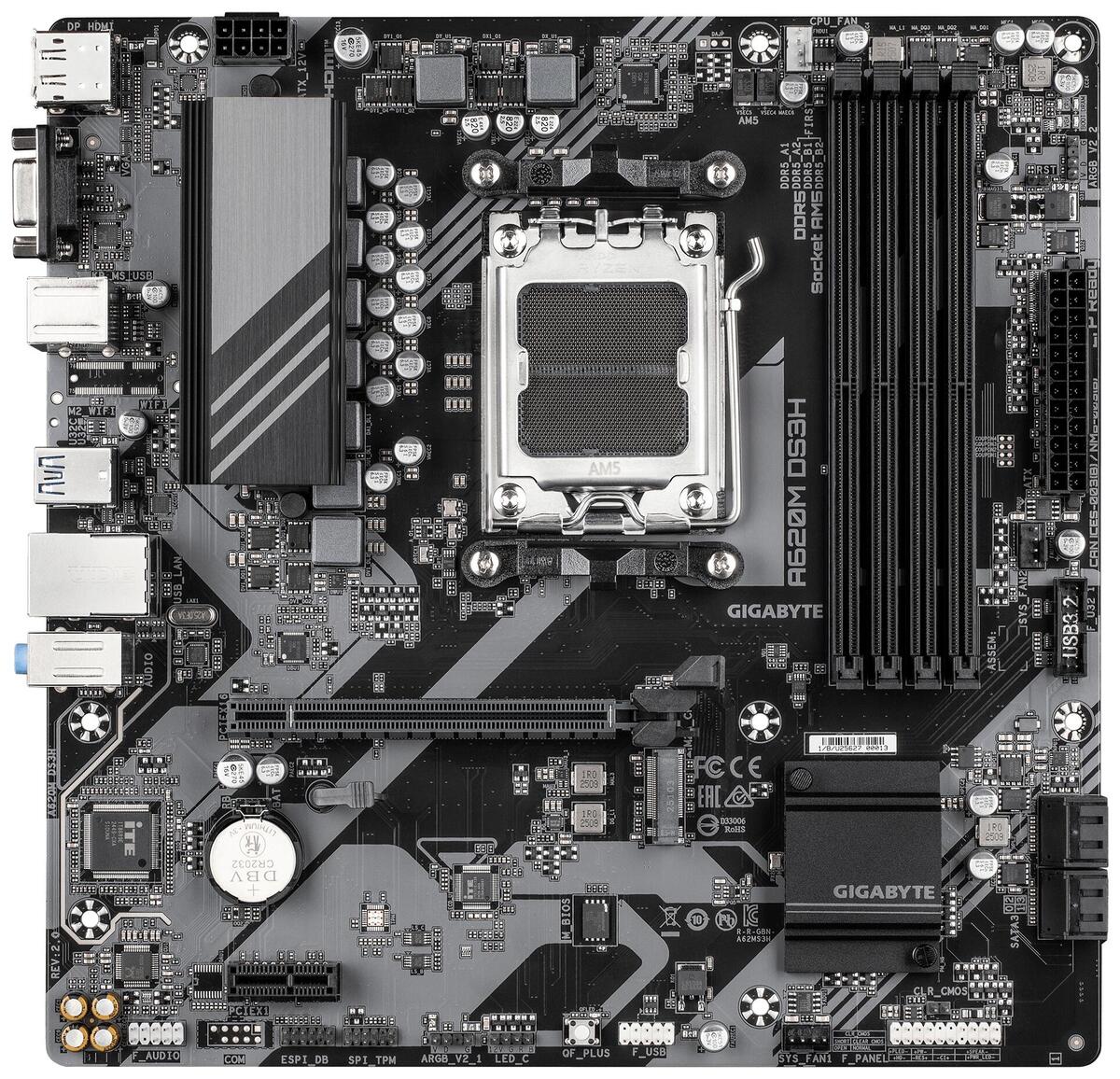

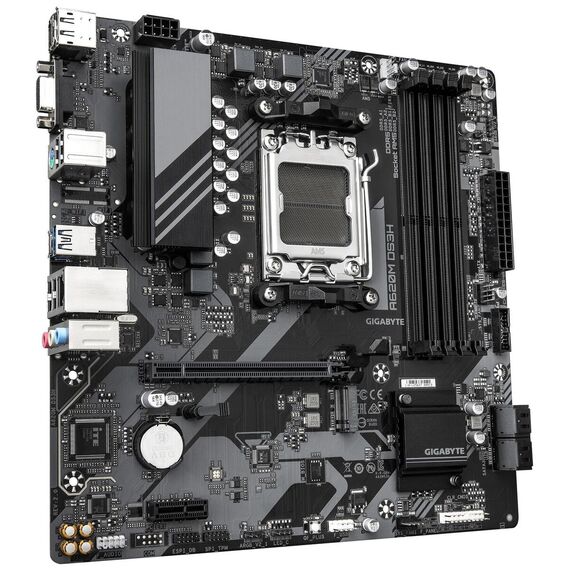

| Connectors | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x Clear CMOS jumper |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS | Support for Windows 11 64-bit; Support for Windows 10 64-bit |
| Warranty | 36 Months |
Производител:
GIGABYTE
Сокет:
AM5
