| Manufacturer | ASROCK |

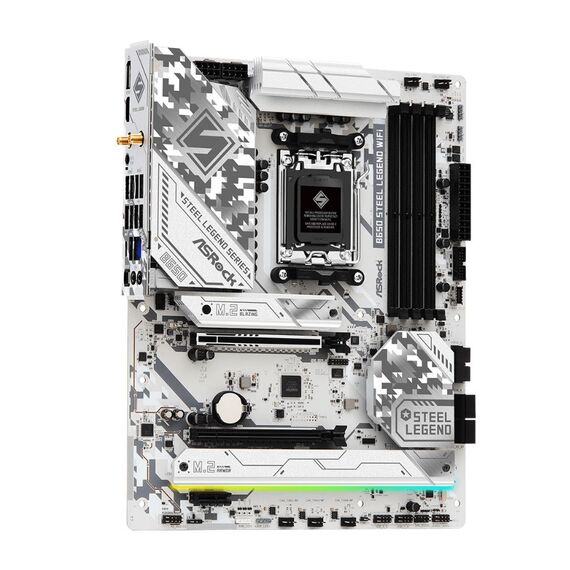

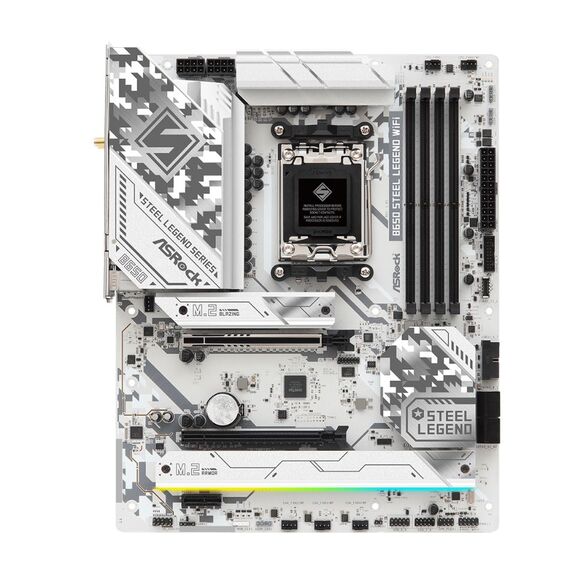

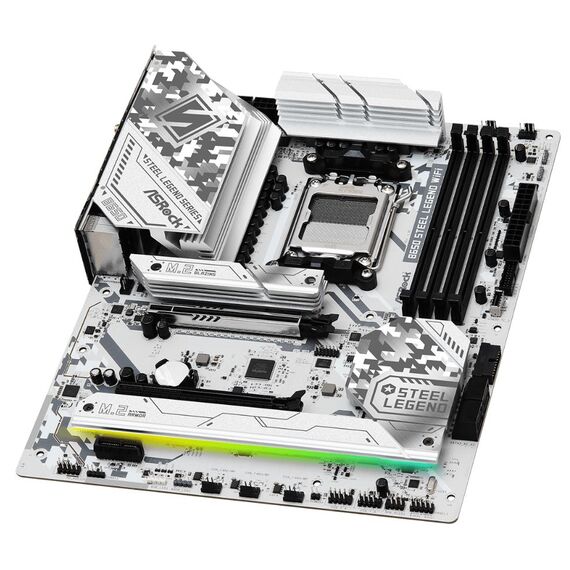

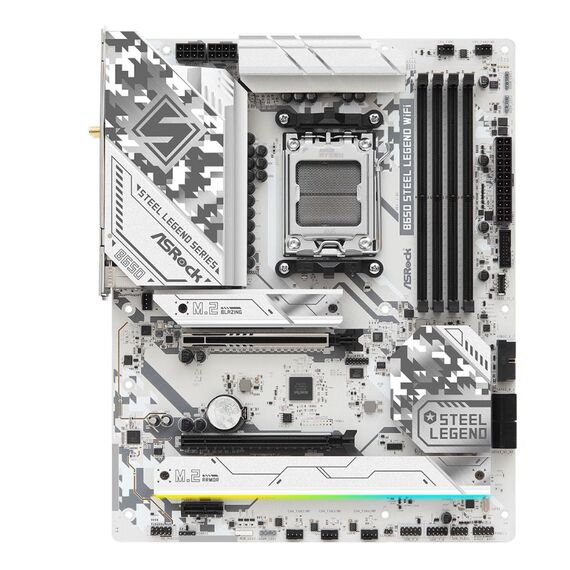

| Model | B650 STEEL LEGEND WIFI |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors;1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*; 1 x PCIe 4.0 x1 Slot (PCIE3)*; 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; Supports AMD CrossFire™; 15μ Gold Contact in VGA PCIe Slot (PCIE1); |
| Memory type | Dual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC); Max. capacity of system memory: 256GB; Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules; |
| Chipset | AMD B650 |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU); 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz; |
| Storage | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*; 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset:; 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; 2 x SATA3 6.0 Gb/s Connectors**; ASMedia ASM1061:; 2 x SATA3 6.0 Gb/s Connectors; |

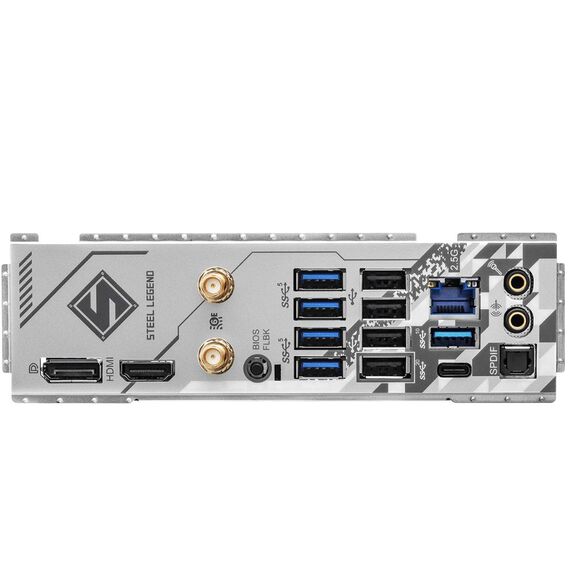

| I/O | 2 x Antenna Ports; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x Optical SPDIF Out Port; 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s); 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); 4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.); 4 x USB 2.0 Ports; 1 x RJ-45 LAN Port; 1 x BIOS Flashback Button; 1 x Line Out Jack (Gold Audio Jack); 1 x Microphone Input Jack (Gold Audio Jack);CPU:; 1 x USB 3.2 Gen2 Type-A (Rear); 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset:; 1 x USB 3.2 Gen2x2 Type-C (Rear); 1 x USB 3.2 Gen1 Type-C (Front); 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34), 4 Front); 8 x USB 2.0 (4 Rear, 4 Front); |

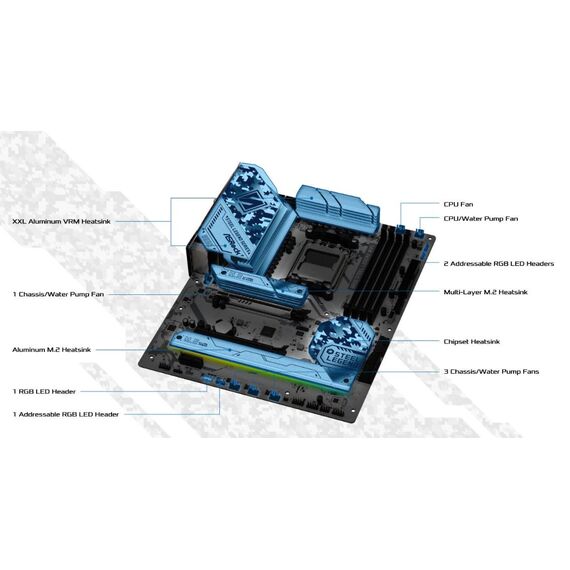

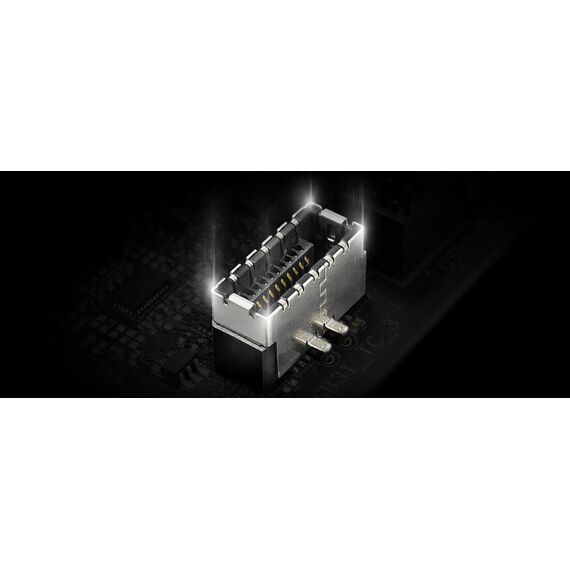

| Connectors | 1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header*; 3 x Addressable LED Headers**; 1 x CPU Fan Connector (4-pin)***; 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen1 Header; |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec); Individual PCB Layers for R/L Audio Channel; Impedance Sensing on Rear Out port; Nahimic Audio; |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control; 802.11axe Wi-Fi 6E Module; Supports IEEE 802.11a/b/g/n/ac/ax/axe; Supports Dual-Band 2x2 with extended 6GHz band* support; 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; Supports Bluetooth 5.2 + High speed class II; Supports MU-MIMO; |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 8 Layer PCB; |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |

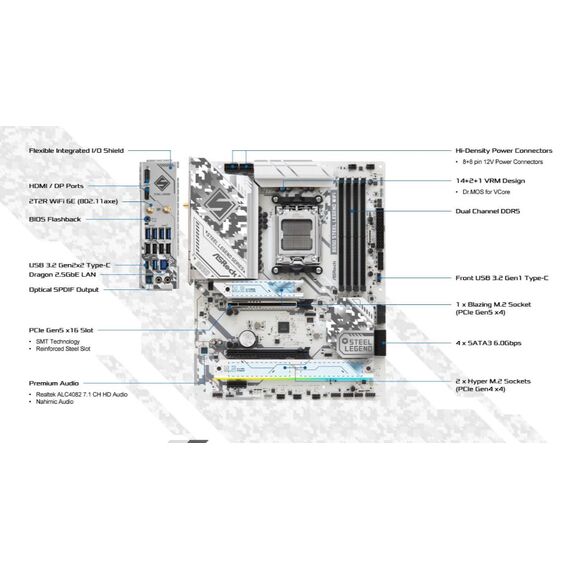

| Other | Superb Productivity; PCIe Gen5 (Graphics, M.2); Dual Channel DDR5; Rock-Solid Durability; 14+2+1 Power Phase, 80A Dr.MOS with Enlarged Heatsink Armor; Flexible Integrated I/O Shield; 20K Long-lasting Black Caps (high quality and conductive polymer capacitors); Ultrafast Connectivity; 2.5G LAN, 802.11axe Wi-Fi 6E Module; EZ Update; BIOS Flashback Button; ASRock Auto Driver Installer; EZ Troubleshooter; Software; ASRock Motherboard Utility (A-Tuning); ASRock Dragon 2.5G LAN Software; ASRock Polychrome SYNC*; UEFI; ASRock Full HD UEFI; ASRock Auto Driver Installer; ASRock Instant Flash; |
| Warranty | 36 Months |
Производител:
ASROCK
Сокет:
AM5
