| Manufacturer | ASRock Inc. |
| Memory type | Dual Channel DDR5 Memory Technology;- 2 x DDR5 DIMM Slots;- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*;- Max. capacity of system memory: 128GB;- Supports Extreme Memory Profile (XMP) and EXTended;Profiles for Overclocking (EXPO) memory modules |
| Features | Superb Productivity;- PCIe Gen5 (M.2);- Dual Channel DDR5;Rock-Solid Durability;- 8+2+1 Power Phase, 60A Dr.MOS with Enlarged Heatsink Armor;- Pre-Installed I/O Shield;- Flexible Integrated I/O Shield Ultrafast Gaming;- 2.5G LAN, 802.11ax Wi-Fi 6E Module;- ASRock Lightning Gaming Ports;EZ Update;- BIOS Flashback Button;- ASRock Auto Driver Installer |
| CPU's supported | - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B650 |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Expansion Slots | CPU;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*;- 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage | CPU;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*;- 2 x SATA3 6.0 Gb/s Connectors |

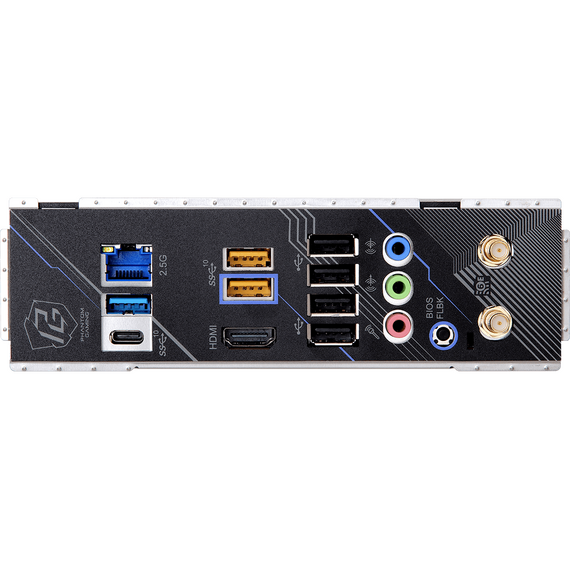

| I/O | - 2 x Antenna Ports;- 1 x HDMI Port;- 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are Lightning Gaming Ports.);- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s);- 4 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- 1 x BIOS Flashback Button;- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Connectors | - 2 x Addressable LED Headers*;- 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**;- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***;- 1 x 24 pin ATX Power Connector;- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector);- 1 x Front Panel Audio Connector;- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports);- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports);- 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec);- Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;- Dragon RTL8125BG;- Supports Phantom Gaming LAN Software;- Smart Auto Adjust Bandwidth Control;- Visual User Friendly UI;- Visual Network Usage Statistics;- Optimized Default Setting for Game, Browser, and Streaming Modes;- User Customized Priority Control |
| BIOS | AMD B650 |
| Form Factor | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm;- 8 Layer PCB |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Other | Wireless LAN: 802.11ax Wi-Fi 6E Module;- Supports IEEE 802.11a/b/g/n/ac/ax;- Supports Dual-Band 2x2 with extended 6GHz band* support;- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;- Supports Bluetooth 5.2 + High speed class II;- Supports MU-MIMO |
| Warranty | 36 Months |
Производител:
ASROCK
Сокет:
AM5
