| Manufacturer | ASUS |
| Wireless | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Memory type | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO™); OptiMem II |
| Features | ASUS TUF PROTECTION; DIGI+ VRM (- Digital power design with DrMOS); Enhanced DRAM Overcurrent Protection; ESD Guards; TUF LANGuard; Overvoltage Protection; SafeSlot Core+; Stainless-Steel Back I/O ASUS Q-Design; M.2 Q-Latch; Q-DIMM; Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); Q-Slot; ASUS Thermal Solution; M.2 heatsink; VRM heatsink design; ASUS EZ DIY; BIOS FlashBack™ button; BIOS FlashBack™ LED; ProCool; Pre-mounted I/O shield; SafeDIMM; Aura Sync; Aura RGB header; Addressable Gen 2 headers |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Bluetooth | 5.2 |
| Graphics | 1 x DisplayPort; 1 x HDMI® port |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot; AMD Ryzen™ 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode); AMD B650 Chipset; 4 x SATA 6Gb/s ports |

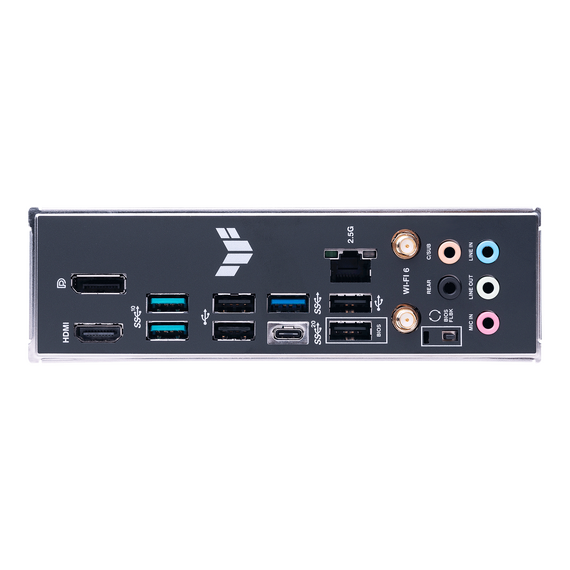

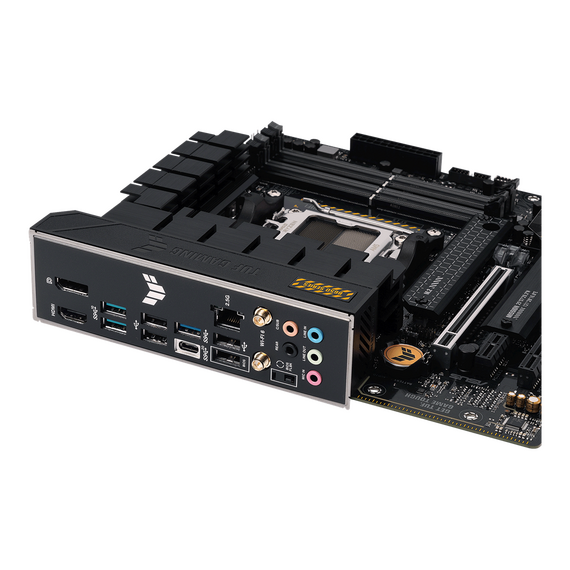

| I/O | Back Panel I/O Ports; 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI®port; 1 x Wi-Fi Modul; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack™ button |
| Connectors | Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB Gen 1 connector (supports USB Type-C® ); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ (USB4®) header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers |
| LAN | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| OS | Windows®11, Windows®10 64-bit |
| Warranty | 36 Months |
Производител:
ASUS
Сокет:
AM5
