| Graphics | 1x HDMI™; 1x DisplayPort; Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*; Support DP 1.4, maximum resolution of 4K 60Hz* |
| CPU's supported | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Chipset | INTEL Z790 |
| Expansion Slots | 3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 PCIe 5.0 supports up to x16 (From CPU); PCI_E2 PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 4x M.2 slot; M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices; M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 6x SATA 6G port |
| Memory type | 4x DDR5, Maximum Memory Capacity 128GB; Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |

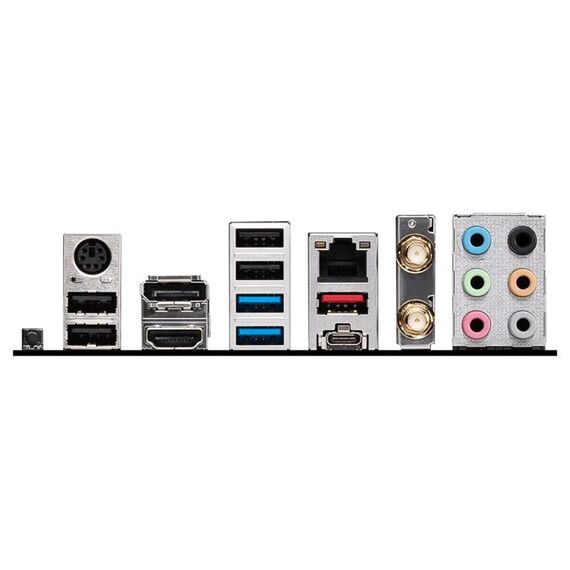

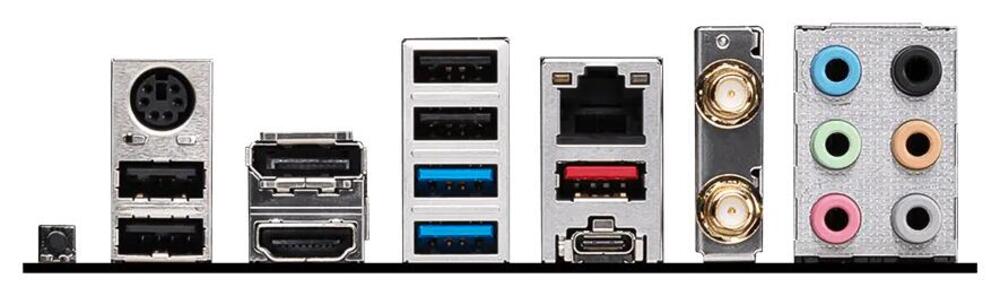

| I/O | Keyboard / Mouse; DisplayPort; USB 2.0; 2.5G LAN; Wi-Fi / Bluetooth; Audio Connectors; Flash BIOS Button; USB 2.0; HDMI™; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C); USB 3.2 Gen 2 10Gbps (Type-A) |
| Connectors | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0; 4x USB 3.2 Gen1 Type A; 1x USB 3.2 Gen2 Type C |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
| LAN | Intel® 2.5Gbps LAN |
| Form Factor | ATX ,243.84mmx304.8mm |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Other | Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) ; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA |
| Warranty | 36 Months |
Производител:
MSI
Сокет:
1700
