| CPU's supported | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology |
| Memory type | - Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*; - 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*; - Max. capacity of system memory: 96GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Chipset | - Intel® H610 |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12)*; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* |
| Storage | Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors |

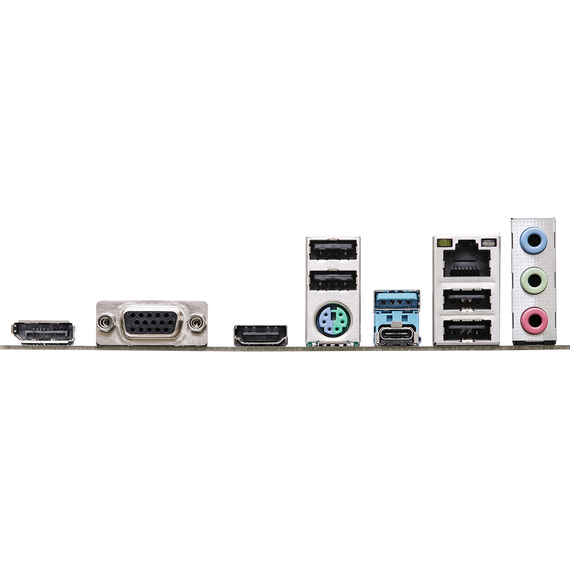

| I/O | - 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 1 x USB 3.2 Gen1 Type-A Port; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Connectors | - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x Addressable LED Header*; - 1 x CPU Fan Connector (4-pin)**; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | - Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
Производител:
ASROCK
Сокет:
1700
