| Features | 4x EZ Debug LED |
| CPU's supported | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Chipset | INTEL B760 |
| Graphics | 1x HDMI; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; |
| Expansion Slots | 5x PCIe x16 slots; • PCI_E1 slot (From CPU); • Supports PCIe 4.0 x16; • PCI_E2 slot (From B760 chipset); • Supports PCIe 3.0 x1; • PCI_E3 slot (From B760 chipset); • Supports PCIe 4.0 x4; • PCI_E4 slot (From B760 chipset); • Supports PCIe 3.0 x1; • PCI_E5 slot (From B760 chipset); • Supports PCIe 3.0 x1; |
| Storage | 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; 4x SATA 6G; |

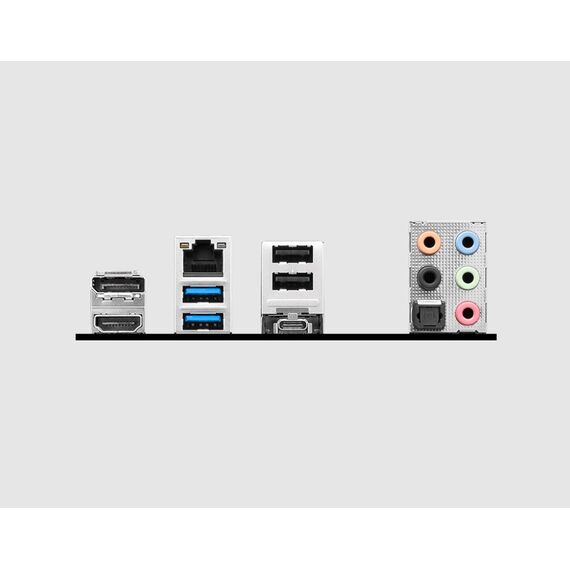

| I/O | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type C (Rear); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x TBT connector (JTBT, supports RTD3); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports; |
| Connectors | ∙1x Front panel audio connector ∙2x System panel connectors; ∙1x Chassis Intrusion connector ∙1x TPM module connector; ∙1x Serial port connector ∙1x TBT connector (Supports RTD3);∙1x 4-pin CPU fan connector ; ∙1x 4-pin water-pump fan connector; ∙5x 4-pin system fan connectors; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output; |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| BIOS | 1x 256 Mb flash ∙UEFI AMI BIOS ∙ACPI 6.4, SMBIOS 3.5 ∙Multi-language |
| Form Factor | ATX Form Factor ∙9.6 in. x 12 in. (244 mm x 304 mm) |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Other | Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics |
| Warranty | 36 Months |
Памет:
DDR4
Производител:
MSI
Сокет:
1700
