| Manufacturer | ASUS |
| Memory type | 4 x DIMM slots, max. 192GB, DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); ASUS Enhanced Memory Profile II (AEMP II) |
| Features | ASUS 5X PROTECTION III; DIGI+ VRM (- Digital power design with DrMOS); ESD Guards; LANGuard; SafeSlot Core+; Stainless-Steel Back I/O; ASUS Q-Design; Q-DIMM; Q-LED Core; Q-Slot; ASUS Thermal Solution; M.2 heatsink; VRM heatsink design; ASUS EZ DIY; ProCool; AURA Sync; AURA RGB header; Addressable Gen 2 headers |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® |
| Chipset | Intel® B760 Chipset |
| Graphics | 1 x DisplayPort;1 x HDMI™ port |
| Expansion Slots | Intel® CoreTM Processors (14th & 13th & 12th Gen); 1 x PCIe 4.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® CoreTM Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |

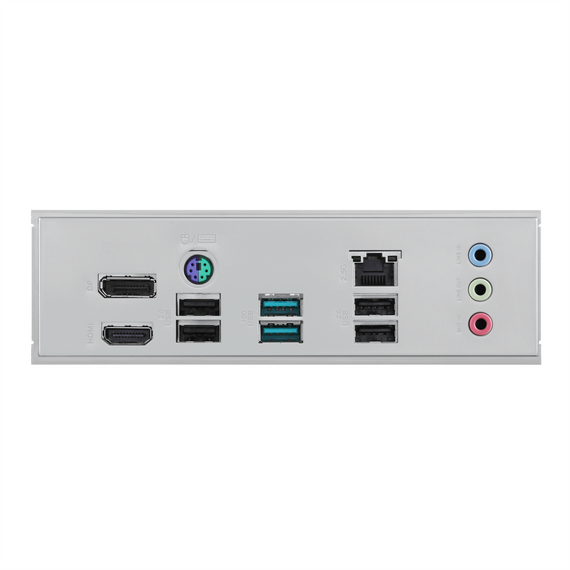

| I/O | Back Panel I/O Ports; 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port |
| Connectors | Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 header support 5 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front panel audio header (F_AUDIO); 1 x LPT header; 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback"; Audio Features; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers |
| LAN | 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| OS | Windows® 11, Windows® 10 64-bit |
| Warranty | 36 Months |
Памет:
DDR5
Производител:
ASUS
Сокет:
1700
