| Manufacturer | ASUS |
| Wireless | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band**;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.;Bluetooth® v5.4***;*Wi-Fi features may vary depending on the operating system;For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.;For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.;** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.;*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Memory type | 4 x DIMM slots, max. 192GB, DDR5;Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*;Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII);* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration;** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Features | ASUS TUF PROTECTION;- DIGI+ VRM (- Digital power design with DrMOS);- ESD Guards;- TUF LANGuard;- Overvoltage protection;- SafeSlot;- Stainless-steel back I/O;ASUS Q-Design;- M.2 Q-Latch;- M.2 Q-Release;- M.2 Q-Slide;- Q-Release Slim (with PCIe SafeSlot);- Q-Antenna;- Q-Dashboard;- Q-DIMM;- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]);- Q-Slot;ASUS Thermal Solution;- M.2 heatsink backplate;- M.2 heatsink;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack™ button;- BIOS FlashBack™ LED;- CPU Socket lever protector;- ProCool;- Pre-mounted I/O shield;- SafeDIMM;Aura Sync;- Addressable Gen 2 headers;Front Panel USB 20Gbps with PD Fast Charge Support;- Support: up to 30W fast charging and USB Wattage Watcher;- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A;- Compatible with PD3.0 |
| CPU's supported | Support Intel® Core™ Ultra Processors (Series 2), LGA1851*;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® Z890 Chipset |
| Bluetooth | 5.4 |
| Graphics | 1 x DisplayPort**;1 x HDMI™ port***;2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****;* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;*** Supports 4K@60Hz as specified in HDMI 2.1.;**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.;***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.;****** VGA resolution support depends on processors' or graphic cards' resolution.;******* While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Expansion Slots | Intel® Core™ Ultra Processors(Series 2)*;-1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;-1 x PCIe 4.0 x16 slot (supports x4 mode);-1 x PCIe 4.0 x4 slot;-2 x PCIe 4.0 x1 slots |
| Storage | Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors(Series 2)*;-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);-M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;-M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);-M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);-4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |

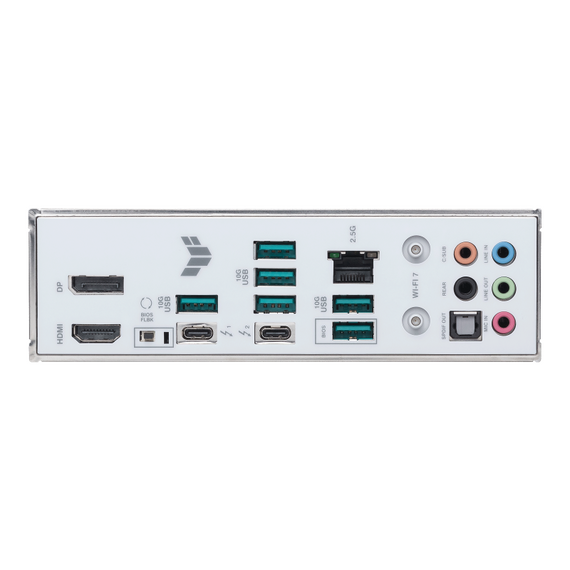

| I/O | 1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button;Rear USB (Total 8 ports);2 x Thunderbolt™ 4 ports (2 x USB Type-C®);6 x USB 10Gbps ports (6 x Type-A);Front USB (Total 7 ports);1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge )*;1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| Connectors | Fan and Cooling Related;-1 x 4-pin CPU Fan header;-1 x 4-pin CPU OPT Fan header;-1 x 4-pin AIO Pump header;-4 x 4-pin Chassis Fan headers;Power Related;-1 x 24-pin Main Power connector;-2 x 8-pin +12V CPU Power connectors;Storage Related;-4 x M.2 slots (Key M);-4 x SATA 6Gb/s ports;USB;-1 x USB 20Gbps connector (supports USB Type-C® );-1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;-2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;-3 x Addressable Gen 2 headers;-1 x Clear CMOS header;-1 x Chassis Intrusion header;-1 x COM Port header;-1 x Front Panel Audio header (F_AUDIO);-1 x 10-1 pin Front System Panel header;-1 x Thermal Sensor header;-1 x Thunderbolt™ (USB4®) header |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback*;Audio Features;- Audio Shielding;- Rear optical S/PDIF out port;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit;* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| LAN | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 30.5 cm x 24.4 cm |
| OS | Windows 11 (22H2 & later) |
| Warranty | 36 Months |
Памет:
DDR5
Производител:
ASUS
Сокет:
1851
