| Power | Total:700W +5V/+3.3V:110W, +12V:648W, -12V:3.6W, +5Vsb:12.5W Total:600W +5V/+3.3V:110W, +12V:552W, -12V:3.6W, +5Vsb:12.5W |
| Manufacturer | ADATA |
| AC Input | Input Voltage: 100-240V, 47~63Hz;Input Current: 9A - 10A;Input Frequency: 47 - 63Hz |
| DC Output | DC Output Voltage: +5V | +3.3V | +12V | -12V | +5Vsb;Total Output: 700W: +5V: 17A, +3.3V:19A, +12V:54A, -12V:0.3A, +5Vsb:2.5A 600W: +5V: 17A, +3.3V:19A, +12V:46A, -12V:0.3A, +5Vsb:2.5A |
| Connectors | ATX 24 Pin Connector: 1;EPS 8 (4+4) Pin Connector: 2;Molex 4 Pin Connector: 2;SATA Connector: 5; |
| PFC Type | > 0.99 @ Typical load |

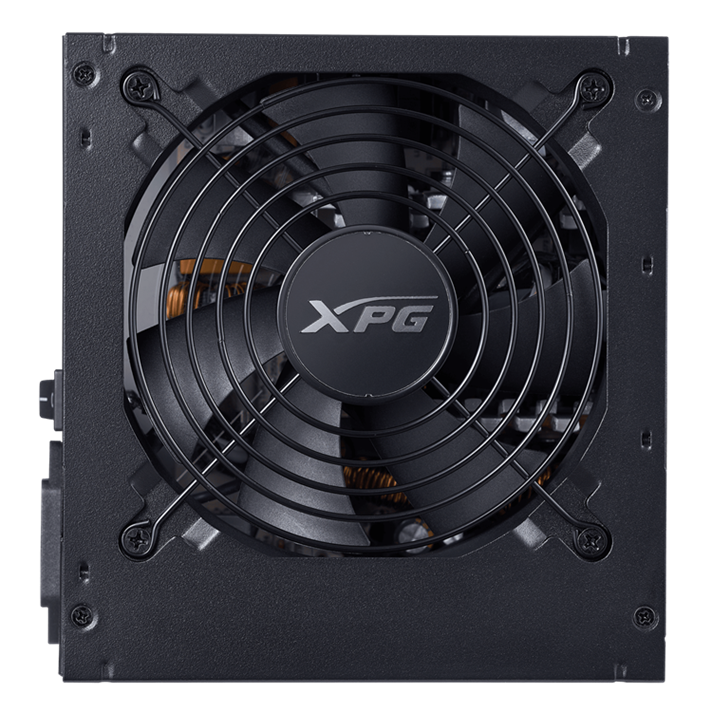

| Fan Information | Fan Size: 120mm;Fan Bearing: Sleeve Bearing Fan;Fan Speed: 2400 ± 10% RPM |
| Safety and Environmental | OVP / OPP / SCP / UVP / OTP / SIP |
| Dimensions | 140 x 150 x 86mm |
