| USB | CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;CPU+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports available through the internal USB headers;Chipset+USB 3.2 Gen 1 Hub:;- 4 x USB 3.2 Gen 1 ports on the back panel |
| Manufacturer | GIGABYTE |
| Wireless | Realtek® Wi-Fi 7 RTL8922AE;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.);* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.);** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations |
| Memory type | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Features | Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.;Support for Q-Flash;Support for Q-Flash Plus;Support for Smart Backup |
| CPU's supported | AMD Socket AM5, support for:;AMD Ryzen™ 9000 Series Processors/;AMD Ryzen™ 8000 Series Processors/;AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B850 |
| Bluetooth | 5.4 |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version and HDR.;- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2) |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| I/O | iTE® I/O Controller Chip |

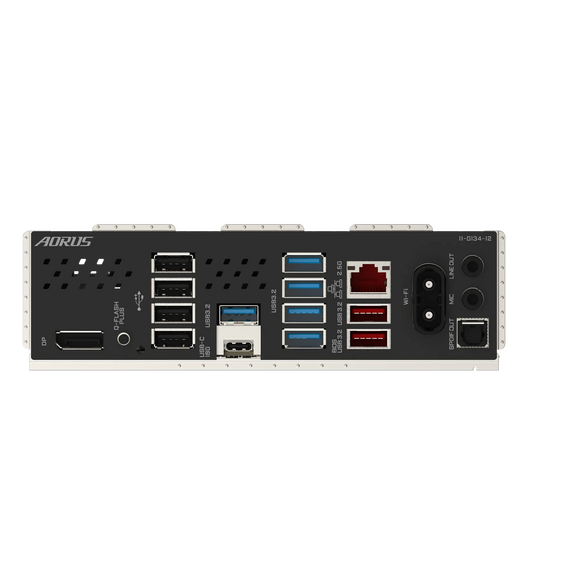

| Connectors | 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;3 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x HDMI port*;1 x power button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors:;1 x DisplayPort*;1 x Q-Flash Plus button;4 x USB 2.0/1.1 ports;1 x USB Type-C® port, with USB 3.2 Gen 2 support;5 x USB 3.2 Gen 1 ports;1 x RJ-45 port;2 x USB 3.2 Gen 2 Type-A ports (red);2 x antenna connectors (2T2R);2 x audio jacks;1 x optical S/PDIF Out connector |
| Audio | Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| BIOS | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| OS | Support for Windows 11 64-bit;Software: Norton® Internet Security (OEM version);LAN bandwidth management software |
