| USB | Chipset:;- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front);- 6 x USB 2.0 (4 Rear, 2 Front) |
| Manufacturer | ASRock |
| Memory type | Dual Channel DDR5 Memory Technology;2 x DDR5 DIMM Slots;Supports DDR5 non-ECC, un-buffered memory up to 6400;Supports Clocked Unbuffered DIMM (CUDIMM);Max. capacity of system memory: 128GB;Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Features | Superb Productivity;- Dual Channel DDR5;Rock-Solid Durability;- 6+1+1+1+1 Power Phase;-ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology;EZ Update;- ASRock Auto Driver Installer |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851);Supports Intel® Hybrid Technology;Supports Intel® Turbo Boost Max 3.0 Technology;Supports Intel® Thermal Velocity Boost (TVB);Supports Intel® Adaptive Boost Technology (ABT);Integrated NPU for dedicated AI acceleration |
| Chipset | Intel® H810 |
| Graphics | Intel® Xe LPG Graphics Architecture;1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Expansion Slots | CPU:;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x1 Slot (PCIE2);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | Chipset:;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 4 x SATA3 6.0 Gb/s Connectors |

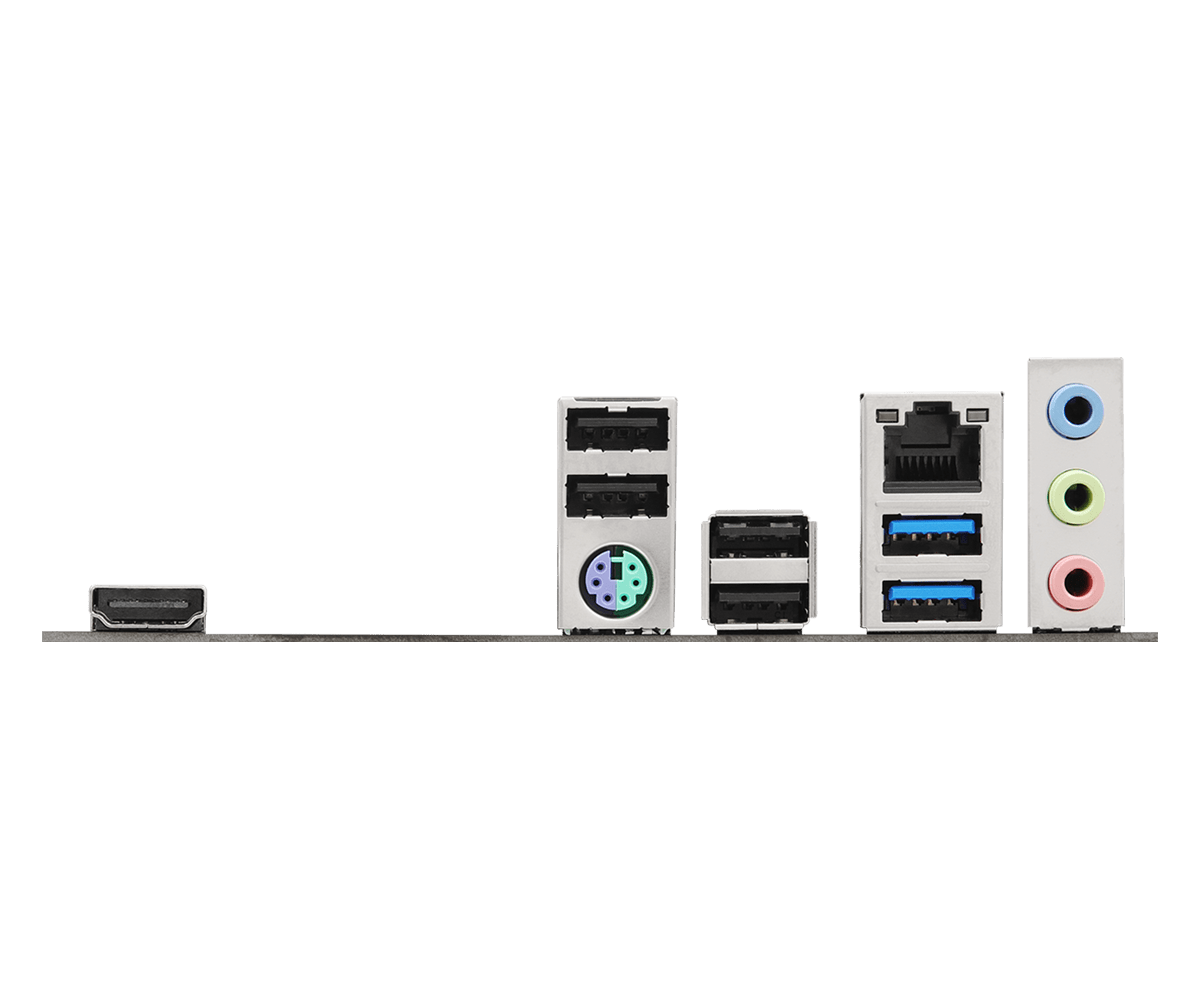

| I/O | 2 x Antenna Mounting Points;1 x PS/2 Mouse/Keyboard Port;1 x HDMI Port;2 x USB 3.2 Gen1 Ports;4 x USB 2.0 Ports;1 x RJ-45 LAN Port;HD Audio Jacks: Line in / Front Speaker / Microphone |
| Connectors | 1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;2 x Addressable LED Headers;1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control);1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;1 x 8 pin 12V Power Connector;1 x Front Panel Audio Connector;1 x USB 2.0 Header (Supports 2 USB 2.0 ports);1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Gigabit LAN 10/100/1000 Mb/s;Realtek RTL8111H |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| OS | Microsoft Windows® 11 64-bit |
| Other | Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock My Favorites in UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash |
