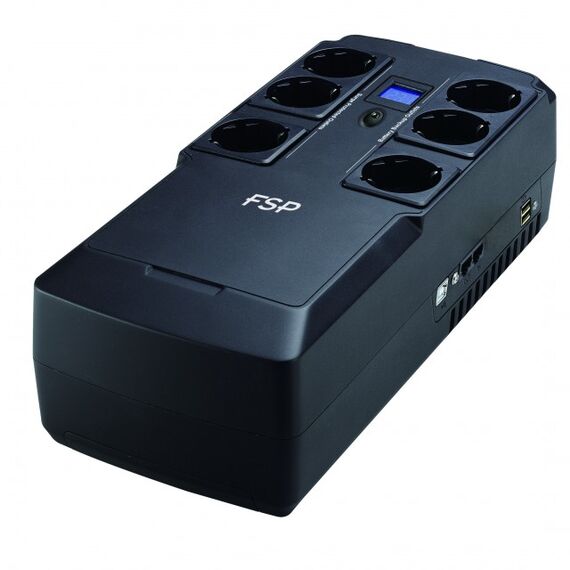

| Model | NANO FIT 800 |
| Capacity | 800VA / 480W |
| Type | Line-interactive |
| Input | Voltage:220/230/240 Vac; Acceptable Voltage Range:180-270 Vac; Frequency Range:60Hz / 50Hz (Auto sensing). |
| Output | Voltage: 220/230/240 Vac; AC Voltage Regulation (Batt. Mode): ±10%; Frequency Range (Batt. Mode): 60Hz or 50Hz ±1Hz; Transfer Time: Typical 2-6 ms, Max. 10ms; Waveform (Batt. Mode): Simulated Sinewave. |
| Display | Line Mode: Green lighting; Battery Mode: Yellow flashing; Fault: Red lighting. |
| Alarms | Battery Mode: Beeps every 10 seconds; Low Battery: Beeps every second; Overload: Beeps every 0.5 second; Fault: Continuously beeping. |
| Battery | Battery Type & Number:12V / 5Ah x 1; Typical Recharge Time: 8 hours recover to 90% capacity. |
| Environment | Full Protection: Overload, discharge, and overcharge protection; Humidity:0-90 % RH @ 0- 40°C (non-condensing); Noise Level:Less than 40dB. |
| Dimensions | 305 x 158.5 x 95 mm |
| Warranty | 24 months, 12 months battery |
