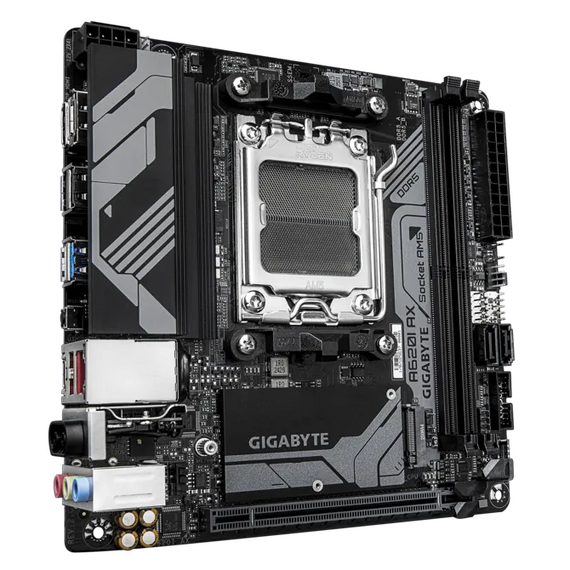

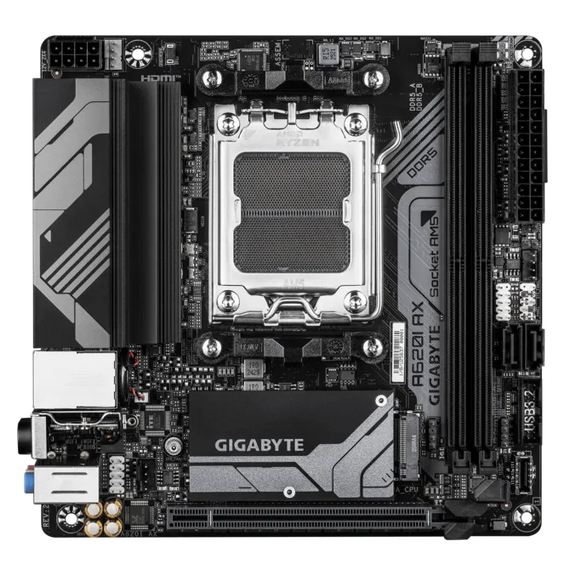

GB A620I AX / AM5
R72484
Описание
| USB | CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 1 x USB 2.0/1.1 port on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Manufacturer | GIGABYTE |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Memory type | Support for DDR5 8000(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Features | Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.;Support for Q-FlashSupport for Q-Flash Plus;Support for Smart Backup |
| CPU's supported | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD A620A |
| Bluetooth | 5.4 |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version.;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports. |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU:;- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD |
| Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:;- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for NVMe SSD storage devices;RAID 0 and RAID 1 support for SATA storage devices |
| I/O | iTE® I/O Controller Chip |
| Connectors | 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;1 x addressable RGB Gen2 LED strip header;1 x RGB LED strip header;1 x M.2 Socket 3 connector;2 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x speaker header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;1 x USB 2.0/1.1 header;1 x reset jumper1 x Clear CMOS jumper;1 x chassis intrusion header;Back Panel Connectors;1 x DisplayPort (Note);1 x HDMI port (Note);1 x USB Type-C® port, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 2 Type-A port (red);1 x USB 3.2 Gen 1 port;3 x USB 2.0/1.1 ports;1 x Q-Flash Plus button;1 x RJ-45 port;2 x antenna connectors (2T2R);3 x audio jacks |
| Audio | Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| BIOS | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| OS | Support for Windows 11 64-bit;Support for Windows 10 64-bit |
