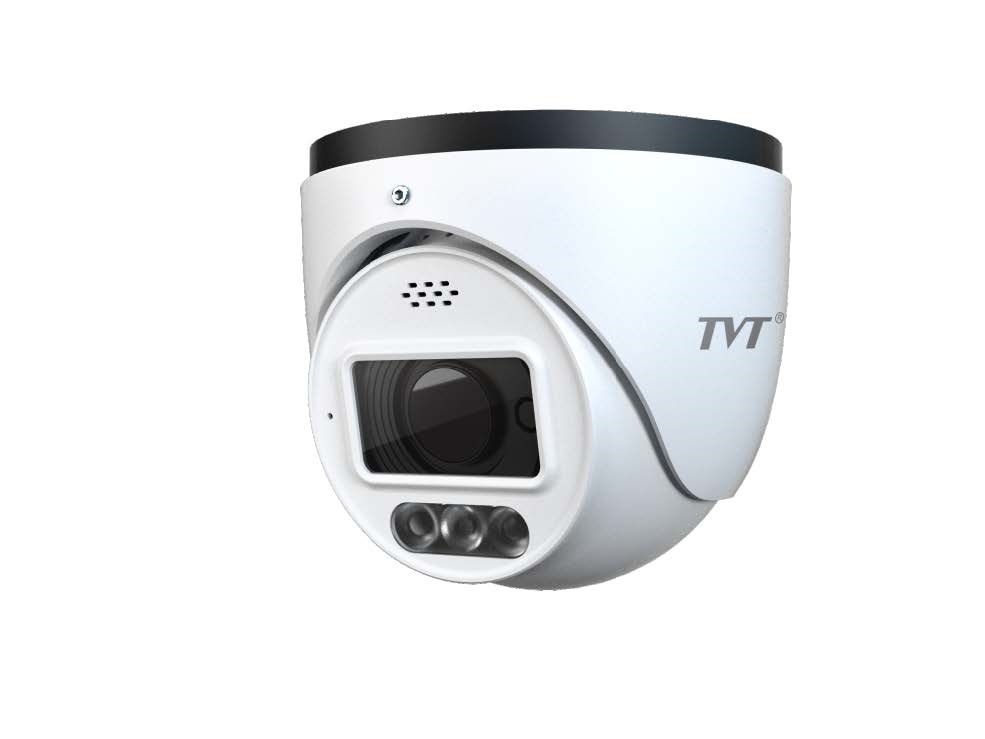

Камера TVT IPC 4MP perimeter TD-9545S4-PA(D/AZ/PE/AW3), Vario 2.8~12mm, Turret
Features
Max. resolution: 4MP (2560 × 1440)
Motorized lens：2.8~12mm
Auto day/night switch
3D DNR, HWDR, HLC, BLC, etc.
ROI coding
Support smart supplement light
30~40m white light view distance; 30~40m IR view distance
DC12V/PoE power supply
IP 66 ingress protection
Support three streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support P2P function
Support SMD
Support line crossing detection, region intrusion detection,abandoned/missing object detection, video exception detection
Blue and red light warning (flashing alternately)
Support user-defined warning voice import
Specification
Model TD-9545S4-PA Camera Image Sensor 1 / 3 "CMOS Image Size 2560×1440 Electronic Shutter 1/1s ~ 1 / 100000s Iris Type Fixed Iris Min. Illumination 0.005 lux @F1.6, AGC ON; 0 lux with illumination on
0.004 lux @F1.4, AGC ON; 0 lux with illumination on Lens [email protected],H.FoV: 92 °~31 °;
V.FoV: 48 °~17.2°;D.FoV: 112 °~ 35.6 ° Focus
Motorized Lens Mount M12 Ø 14 Day/Night Auto, Day, Night, Timing Wide Dynamic Range 120dB BLC Yes HLC Yes Digital NR Yes ≥ S/N Ratio 50dB Angle Adjustment Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° Image Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264/ MJPEG H.265 Compression Standard Main [email protected] High Tier Resolution 4MP (2560×1440 ), 3MP (2304×1296 ),1080P ( 1920 × 1080 ),
720P ( 1280 × 720 ), D1, VGA (640 × 480), CIF, 480 × 240 Main Stream 60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps) Sub Stream 60Hz : 720P/D1/VGA/CIF(1~30fps); 50Hz: 720P/D1/VGA/CIF (1~25fps) Third Stream 60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps) Bit Rate 64 Kbps ~ 6 Mbps Bit Rate Type VBR / CBR Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc.
adjustable through client software or web browser Audio Compression G711A/U ROI Each ROI to be configured separately Interfaces Network RJ45 Video Output No Audio 1CH audio input; 1CH built-in MIC; 1CH audio output; 1CH built-in speaker Storage Built-in micro SD card slot, up to 256GB Reset Yes Functions Remote Monitoring Web browser /TVT NVR/NVMS2.X/Mobile APP Web Browser IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ Online Connection Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, QoS Interface Protocol ONVIF Storage
Може да харесате
- Най-търсени
- В разпродажба
- Последно гледани
AppleIphone 15 Pro
Switching to iPhone
is super simple.
GooglePixel 8 Pro
The best of Google.
Shop now.
Bang & OlufsenBeoplay HX Timber
Comfortable headphones in all conditions.
MicrosoftXbox Series S
Best Value in Gaming.
Power your dreams.
Бърза и качествена доставка
Нашата компания извършва доставки в цялата страна
Гаранция за качество и обслужване
Предлагаме само стоки, за чието качество сме сигурни
Връщане в рамките на 14 дни
Имате правото да се откажете от закупения онлайн продукт в срок от 14 дни
Max. resolution: 4MP (2560 × 1440)
Motorized lens：2.8~12mm
Auto day/night switch
3D DNR, HWDR, HLC, BLC, etc.
ROI coding
Support smart supplement light
30~40m white light view distance; 30~40m IR view distance
DC12V/PoE power supply
IP 66 ingress protection
Support three streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support P2P function
Support SMD
Support line crossing detection, region intrusion detection,abandoned/missing object detection, video exception detection
Blue and red light warning (flashing alternately)
Support user-defined warning voice import
Specification
| Model | TD-9545S4-PA | |||
| Camera | ||||
| Image Sensor | 1 / 3 "CMOS | |||
| Image Size | 2560×1440 | |||
| Electronic Shutter | 1/1s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.005 lux @F1.6, AGC ON; 0 lux with illumination on 0.004 lux @F1.4, AGC ON; 0 lux with illumination on | |||
| Lens | [email protected],H.FoV: 92 °~31 °; V.FoV: 48 °~17.2°;D.FoV: 112 °~ 35.6 ° | |||
| Focus | Motorized | |||
| Lens Mount | M12 | Ø 14 | ||
| Day/Night | Auto, Day, Night, Timing | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| ≥ | ||||
| S/N Ratio | 50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264/ MJPEG | |||
| H.265 Compression Standard | Main [email protected] High Tier | |||
| Resolution | 4MP (2560×1440 ), 3MP (2304×1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, VGA (640 × 480), CIF, 480 × 240 | |||
| Main Stream | 60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps) | |||
| Sub Stream | 60Hz : 720P/D1/VGA/CIF(1~30fps); 50Hz: 720P/D1/VGA/CIF (1~25fps) | |||
| Third Stream | 60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps) | |||
| Bit Rate | 64 Kbps ~ 6 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| Audio Compression | G711A/U | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in MIC; 1CH audio output; 1CH built-in speaker | |||
| Storage | Built-in micro SD card slot, up to 256GB | |||
| Reset | Yes | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage |
