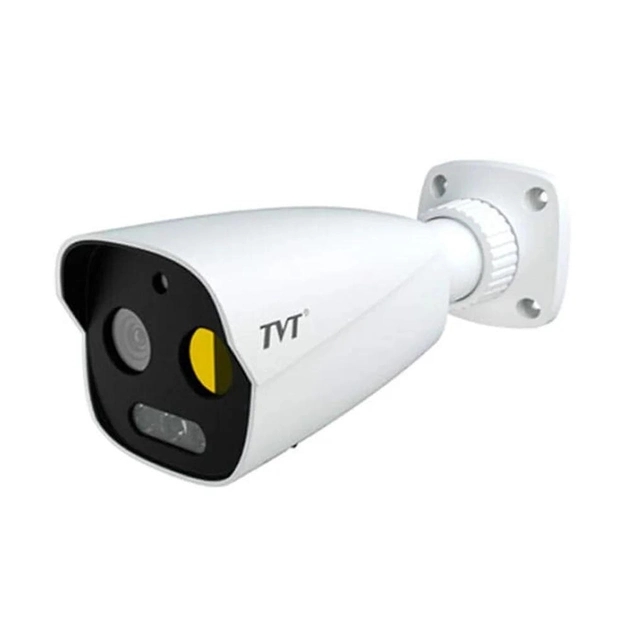

Камера TVT IPC 4MP Thermal TD-5422E1-VT1(3/PE), Bullet
4028516
Описание
Features
Thermal:
Resolution: 256×192
12μm，NETD: ≤50mK (@25°C, F#=1.0)
Temperature range: -20°C~150°C
Multi-palette: white hot, black hot, iron oxide red, rainbow, etc.
Sound and light warning, temperature exception alarm, fire detection
Intelligent analytics: region intrusion/entrance/exiting (human/motor vehicle classification), line crossing detection (human/motor vehicle classification)
Supports dual image fusion
Supports temperature overlay on video stream
Optical:
5MP (2592 × 1944) @30 fps
ICR auto switch, true day/night vision
20~30m IR night view distance
3D DNR, true WDR (120dB), HLC, BLC, Smart IR, distortion image correction, ROI etc.
Intelligent analytics: region intrusion/entrance/exiting detection (human/motor vehicle/non-motor vehicle classification), line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting by line/area (human/vehicle /non-motor vehicle classification), face detection, face capture, illegal parking detection, loitering detection, abandoned/missing object detection
Specification
Model TD-5422E1-VT1 Thermal Module Detector Type 12µm 256×192 Vanadium oxide uncooled focal plane detector Response Waveband 8µm-14µm NETD ≤50mK (@25°C, F#=1.0) IRIS Type Fixed Iris Lens [email protected] [email protected] Field of View(H×V) 56°×42.2° 24.8°×18.7° Min. Focusing Distance 0.5 m 1.1m Color Palettes Black hot, White hot, iron oxide red, rainbow, etc. DRI Distance Human (0.75m) Detection: 133m(436ft) Recognition: 33m(108ft)
Identification:17m(56ft) Detection: 292m(958ft) Recognition: 73m(240ft)
Identification:36m(118ft) DRI Distance Vehicle (2.3m) Detection: 409m (1342ft) Recognition: 102m(335ft)
Identification:51m(167ft) Detection: 894m(2933ft) Recognition: 224m(735ft)
Identification:112m(367ft) Visible Light Module Image Sensor 1/ 2.7" CMOS Image Size 2592 × 1944 Electronic Shutter 1/3 s ~ 1 / 100000 s Iris Type Fixed Iris Min. Illumination 0.02 [email protected], AGC ON; 0 lux with IR
0.03 [email protected], AGC ON; 0 lux with IR Lens [email protected] [email protected] Field of View(H×V) 81°×56.7° 38°×27.5° Wide Dynamic Range 120dB BLC Yes HLC Yes Defog Yes Digital NR 2D/3D DNR Image Video Compression H.265 / H.264 / MJPEG H.264 Compression Standard Baseline Profile / Main Profile / High Profile Bit Rate Type VBR/CBR Bit Rate 128Kbps~ 8Mbps Resolution Thermal: 720P (1280 × 720), D1, CIF, 480 × 240 Optical: 5MP (2592 × 1944), 4MP (2592 × 1520),
2K (2560 × 1440), 3MP (2304 × 1296),1080P (1920 × 1080),720P (1280 × 720), D1, CIF, 480 × 240 Main Stream Optical: 60Hz: 5MP/4MP/2K/3MP/1080P/720P (1~30fps);
50Hz: 5MP/4MP/2K/3MP/1080P/720P (1~25fps) Thermal: 256 × 192
(the resolution of output image is 720P/D1/CIF/480×240) (1~25fps) Sub Stream Optical: 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps) Third Stream Optical: 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps) Dual Image Fusion Yes Temperature Overlay Temperature can be overlaid on video stream Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser Audio Compression G711A/U ROI 8 regions; each ROI to be configured separately Interfaces Network RJ 45 Video Output No Audio 1CH 3.5mm MIC/LIN in audio input; 1CH built-in speaker Storage Built-in micro-SD card slot; up to 256GB Reset Yes RS 485 No Alarm 1CH alarm input; 1CH alarm output Functions Temperature Range -20°C~150°C (-4°F~302°F) Temperature Accuracy ±8°C Temperature alarm Over temperature alarm, low temperature alarm Temperature Measurement 10 rules in total (Point: up to 10; Line: 2, recommended; Area: 2, recommended) Fire Detection Dynamic fire detection, up to 10 fire points detectable Remote Monitoring Web browser/NVMS2.X/Mobile APP Online Connection Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS Interface Protocol ONVIF Storage Network remote storage; micro-SD card storage Smart Alarm Motion detection, SD card error, SD card full, IP address conflict, Cable connection, video exception, audio exception Intelligent Analytics Optical:
region intrusion/entrance/exiting detection/line crossing detection
(human/motor vehicle/non-motor vehicle classification),
target counting by line/ area (human/motor vehicle/non-motor vehicle classification), face detection, illegal parking detection,
loitering detection, abandoned/missing object detection Thermal: fire detection, temperature exception alarm, region intrusion/
entrance/ exiting detection/line crossing detection (human/motor vehicle classification) AI function can be enabled simultaneously on thermal and optical channels General Function Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction Sound & Light Warning White light flashing alarm and sound alarm supported PoE Yes, IEEE802.3 af, class0 IR Distance 20~ 30m Protection Grade IP66 Others Power Supply DC12V / PoE Power Consumption < 9W Operating Environment Humidity: less than 95 % (non-condensing)
-30 °C ~ 60 °C (-22°F~140°F) Certificate CE, FCC Environment Protection Complies with Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006) Dimensions (mm) 217.8 × 80.5 × 80.3 Weight (net) Approx. 0.7KG Installation Ceiling mounting; Wall mounting
Thermal:
Resolution: 256×192
12μm，NETD: ≤50mK (@25°C, F#=1.0)
Temperature range: -20°C~150°C
Multi-palette: white hot, black hot, iron oxide red, rainbow, etc.
Sound and light warning, temperature exception alarm, fire detection
Intelligent analytics: region intrusion/entrance/exiting (human/motor vehicle classification), line crossing detection (human/motor vehicle classification)
Supports dual image fusion
Supports temperature overlay on video stream
Optical:
5MP (2592 × 1944) @30 fps
ICR auto switch, true day/night vision
20~30m IR night view distance
3D DNR, true WDR (120dB), HLC, BLC, Smart IR, distortion image correction, ROI etc.
Intelligent analytics: region intrusion/entrance/exiting detection (human/motor vehicle/non-motor vehicle classification), line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting by line/area (human/vehicle /non-motor vehicle classification), face detection, face capture, illegal parking detection, loitering detection, abandoned/missing object detection
Specification
| Model | TD-5422E1-VT1 | |
| Thermal Module | ||
| Detector Type | 12µm 256×192 Vanadium oxide uncooled focal plane detector | |
| Response Waveband | 8µm-14µm | |
| NETD | ≤50mK (@25°C, F#=1.0) | |
| IRIS Type | Fixed Iris | |
| Lens | [email protected] | [email protected] |
| Field of View(H×V) | 56°×42.2° | 24.8°×18.7° |
| Min. Focusing Distance | 0.5 m | 1.1m |
| Color Palettes | Black hot, White hot, iron oxide red, rainbow, etc. | |
| DRI Distance Human (0.75m) | Detection: 133m(436ft) Recognition: 33m(108ft) Identification:17m(56ft) | Detection: 292m(958ft) Recognition: 73m(240ft) Identification:36m(118ft) |
| DRI Distance Vehicle (2.3m) | Detection: 409m (1342ft) Recognition: 102m(335ft) Identification:51m(167ft) | Detection: 894m(2933ft) Recognition: 224m(735ft) Identification:112m(367ft) |
| Visible Light Module | ||
| Image Sensor | 1/ 2.7" CMOS | |
| Image Size | 2592 × 1944 | |
| Electronic Shutter | 1/3 s ~ 1 / 100000 s | |
| Iris Type | Fixed Iris | |
| Min. Illumination | 0.02 [email protected], AGC ON; 0 lux with IR 0.03 [email protected], AGC ON; 0 lux with IR | |
| Lens | [email protected] | [email protected] |
| Field of View(H×V) | 81°×56.7° | 38°×27.5° |
| Wide Dynamic Range | 120dB | |
| BLC | Yes | |
| HLC | Yes | |
| Defog | Yes | |
| Digital NR | 2D/3D DNR | |
| Image | ||
| Video Compression | H.265 / H.264 / MJPEG | |
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile | |
| Bit Rate Type | VBR/CBR | |
| Bit Rate | 128Kbps~ 8Mbps | |
| Resolution | Thermal: 720P (1280 × 720), D1, CIF, 480 × 240 | |
| Optical: 5MP (2592 × 1944), 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296),1080P (1920 × 1080),720P (1280 × 720), D1, CIF, 480 × 240 | ||
| Main Stream | Optical: 60Hz: 5MP/4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 5MP/4MP/2K/3MP/1080P/720P (1~25fps) | |
| Thermal: 256 × 192 (the resolution of output image is 720P/D1/CIF/480×240) (1~25fps) | ||
| Sub Stream | Optical: 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps) | |
| Third Stream | Optical: 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps) | |
| Dual Image Fusion | Yes | |
| Temperature Overlay | Temperature can be overlaid on video stream | |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser | |
| Audio Compression | G711A/U | |
| ROI | 8 regions; each ROI to be configured separately | |
| Interfaces | ||
| Network | RJ 45 | |
| Video Output | No | |
| Audio | 1CH 3.5mm MIC/LIN in audio input; 1CH built-in speaker | |
| Storage | Built-in micro-SD card slot; up to 256GB | |
| Reset | Yes | |
| RS 485 | No | |
| Alarm | 1CH alarm input; 1CH alarm output | |
| Functions | ||
| Temperature Range | -20°C~150°C (-4°F~302°F) | |
| Temperature Accuracy | ±8°C | |
| Temperature alarm | Over temperature alarm, low temperature alarm | |
| Temperature Measurement | 10 rules in total (Point: up to 10; Line: 2, recommended; Area: 2, recommended) | |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable | |
| Remote Monitoring | Web browser/NVMS2.X/Mobile APP | |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS | |
| Interface Protocol | ONVIF | |
| Storage | Network remote storage; micro-SD card storage | |
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, Cable connection, video exception, audio exception | |
| Intelligent Analytics | Optical:
region intrusion/entrance/exiting detection/line crossing detection
(human/motor vehicle/non-motor vehicle classification), target counting by line/ area (human/motor vehicle/non-motor vehicle classification), face detection, illegal parking detection, loitering detection, abandoned/missing object detection Thermal: fire detection, temperature exception alarm, region intrusion/ entrance/ exiting detection/line crossing detection (human/motor vehicle classification) | |
| AI function can be enabled simultaneously on thermal and optical channels | ||
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction | |
| Sound & Light Warning | White light flashing alarm and sound alarm supported | |
| PoE | Yes, IEEE802.3 af, class0 | |
| IR Distance | 20~ 30m | |
| Protection Grade | IP66 | |
| Others | ||
| Power Supply | DC12V / PoE | |
| Power Consumption | < 9W | |
| Operating Environment | Humidity: less than 95 % (non-condensing) -30 °C ~ 60 °C (-22°F~140°F) | |
| Certificate | CE, FCC | |
| Environment Protection | Complies with Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006) | |
| Dimensions (mm) | 217.8 × 80.5 × 80.3 | |
| Weight (net) | Approx. 0.7KG | |
| Installation | Ceiling mounting; Wall mounting | |
