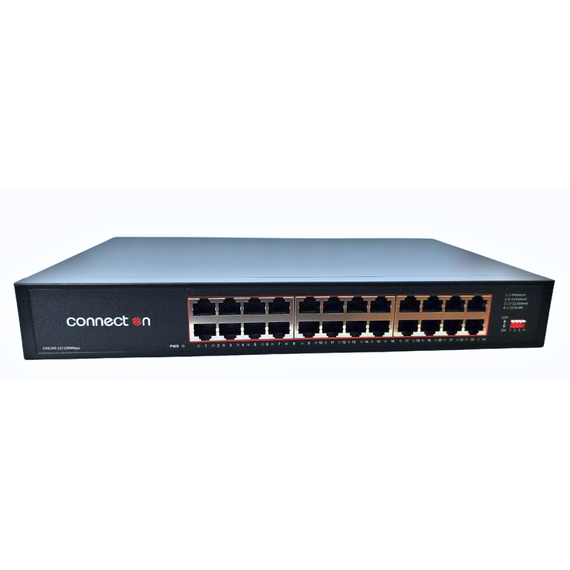

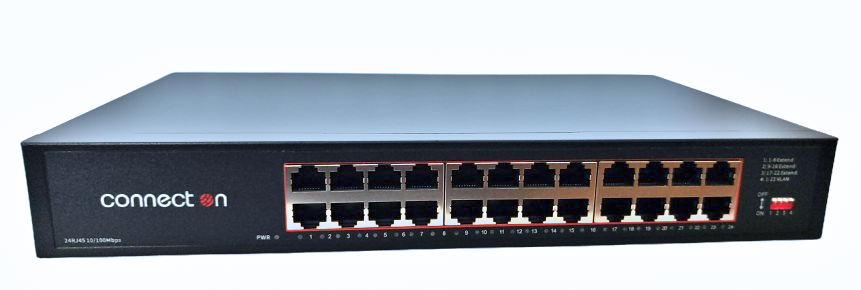

Суич Connect On 24-port 10/100Mbps, неуправляем, Rackmount
Ø 24*100M RJ45 Ethernet port with
auto-negotiation function
Ø Support 100M speed rate, MDI/MDIX
Ø Support IEEE802.3x Flow control and back
pressure control
Ø Each port has the complete LED Indicator
light
Ø
Support IEEE802.1d Spanning Tree
Ø Each port supports wire-speed switching
,64~1518 frame length can reach the wire speed
Ø
Support high
performance QoS function on each port
Ø Support multicast to avoid network congestion
Ø Support 4K lightning protection of each port
Ø Require no configuration and will instantly operate as soon as you power it up
|
Standards |
IEEE802.3
10Base-T IEEE802.3u
100Base-TX/FX |
IEEE802.3x Flow
control IEEE802.1p QoS IEEE802.1d Spanning Tree |
|
Certifications |
CCC, CE |
|
|
Ethernet Port
|
Ø Connector:
RJ45 Ø Data
Rate: 10/100M Ø Distance:
100m Ø UTP
Type: UTP-5E or higher level |
|
|
Performance |
Ø Processing Type: Store and Forward Ø Transmission Mode: half/full-duplex
with auto-negotiation function Ø MAC Table Size: 2K Ø Buffer Space: 448K Ø Back bandwidth: 8.8G Ø Time Delay: ＜150μs |
|
|
Power |
Ø Power type: build-in power supply Ø Input Voltage: AC100V～240V
50/60Hz |
|
|
Environment |
Ø Storage
Temperature: -40～70℃ Ø Operating
Temperature: -10～55℃ Ø Relative
Humidity: 5-90% ( no condensation) |
|
|
Warranty |
2 year |
|
|
Physical
Characteristics |
Ø Dimension: 312×185×46mm Ø Weight: 1.5kg Ø Color: Metal, Black |
|
