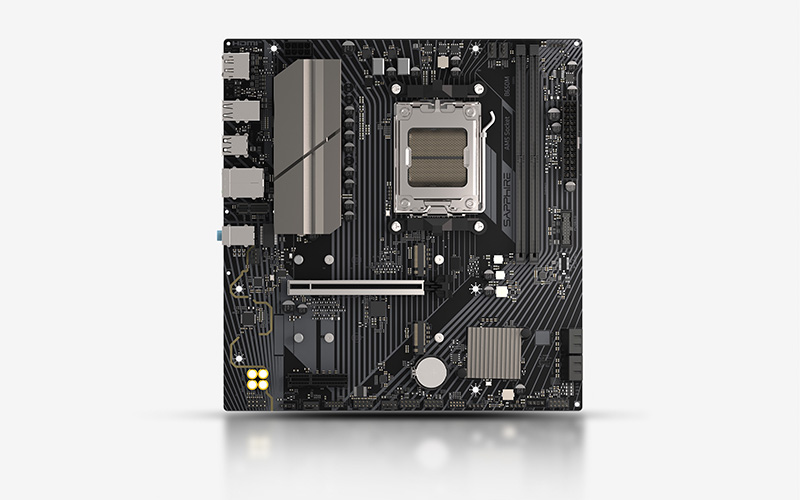

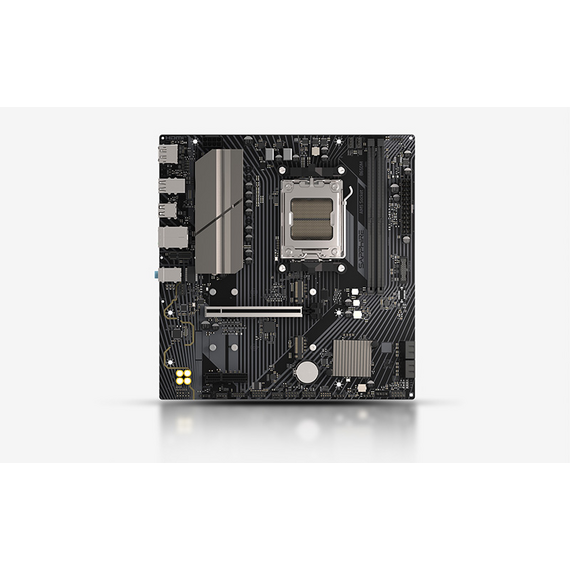

SAPPHIRE B650M-E / AM5
R71993
Описание
| USB | 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A) |
| Manufacturer | SAPPHIRE |
| Memory type | 2x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 96GB (2x 48GB), up to 7600 MHz(OC) |
| CPU's supported | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Interface | 1× DisplayPort, 1× HDMI™;6× USB 2.0, 2× USB 3.2 Gen1 Type-A;1× RJ45 LAN, 3× Audio Jacks |
| Chipset | AMD® B650 |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 4.0 x4 |
| Storage | 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA |
| Connectors | DisplayPort x1, HDMI x1 |
| Audio | Realtek® ALC897 HD Audio, 5.1 Channel |
| LAN | Realtek® RTL8125BG 2.5 Gigabit Ethernet |
| Form Factor | Micro-ATX, 244x235mm |
| OS | Windows 10/11 - 64 Bit |
| Other | Debug LED: DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
