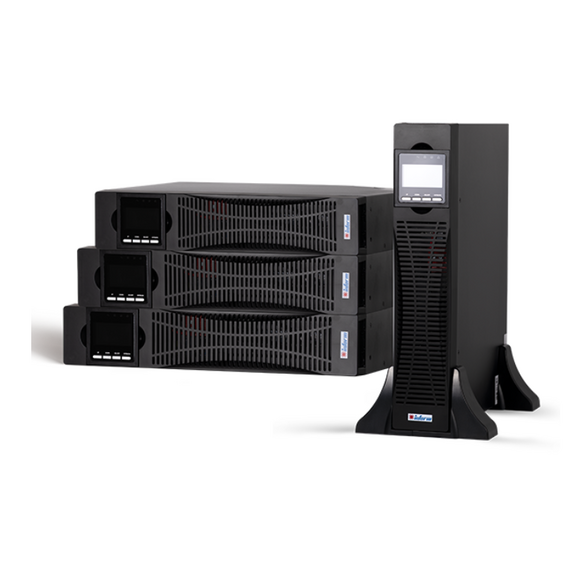

SINUS PRO RT 1KVA ON-LINE
R72325
Описание
| Manufacturer | INFORM |
| Capacity | 1000VA / 1000W |
| Input | Input Voltage Range: 110VAC - 300VAC;Nominal Voltage: 220/230/240Vac;Frequency: 50/60 Hz ±%10 (Auto-sensing), 40-70Hz ( @generator mode );Phase: 1Ph - N – PE;Power Factor: ≥0,99 |
| Output | Power Factor: 1;Output Voltage: 220/230/240Vac;Voltage Regulation: ±%1;Frequency: 50/60 Hz;Output Voltage Harmonic (THDv): ≤%3 (linear load); ≤%5 (non-linear load);Transfer Time: Online Mode - Battery Mode: 0ms, İnverter - Bypass: 4ms (typical);Crest Factor: 3:1;Overload:;Online mode: 105%~125%: 1 min. 125%~130%: 30 sec.;Battery mode: 105%~125%: 1 min. 125%~130%: 10 sec.;Bypass mode: >130% switch to bypass immediately;Efficiency: > %89;Outputs: 2xC13 + 1xGerman Std. Socket |
| Display | LED Display: Online Mode, Battery Mode, Eco Mode, Bypass Mode, Battery Low, Battery Bad, Overload & UPS Failure;LCD Display: Input / Output Voltage and Frequency, Load %, Battery Voltage, Internal Temperature, Remaining Back up Time |
| Battery | Battery Type: Maintenance-free lead acid batteries;Charge Time (Built-in batteries): 6-8 hour 90% capacity (typical);Charge Current: 2A (max.);Voltage: 24VDC;QTY: 2 x 12V / 9Ah |
| Environment | Operating Temperature: 0°C ~ +40°C / -25OC ~ +55OC;Humidity: % 0-95 (non-condensing);Altitude: 0 - 1500 m;Noise Level (1m distance): < 55 dBA;Protection Level: IP20 |
| Dimensions | 440x325x86.5 mm |
