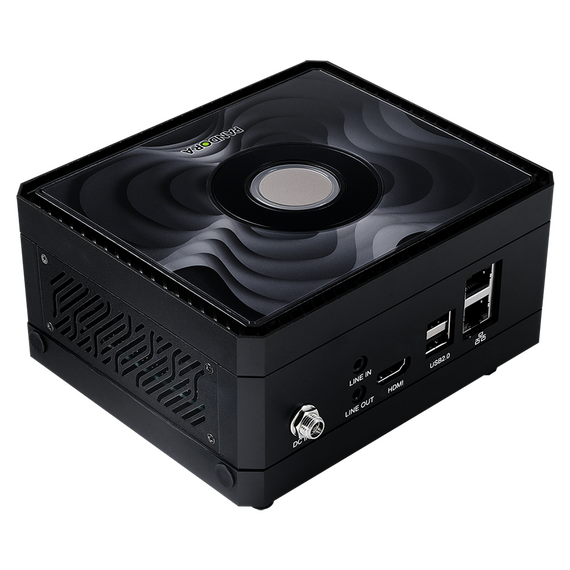

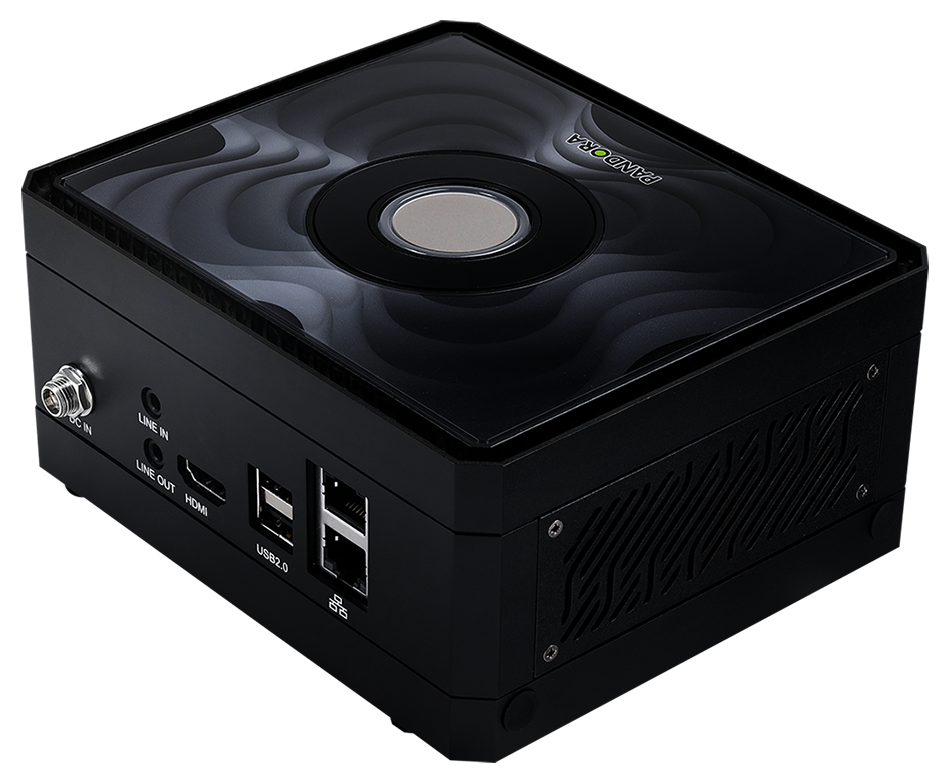

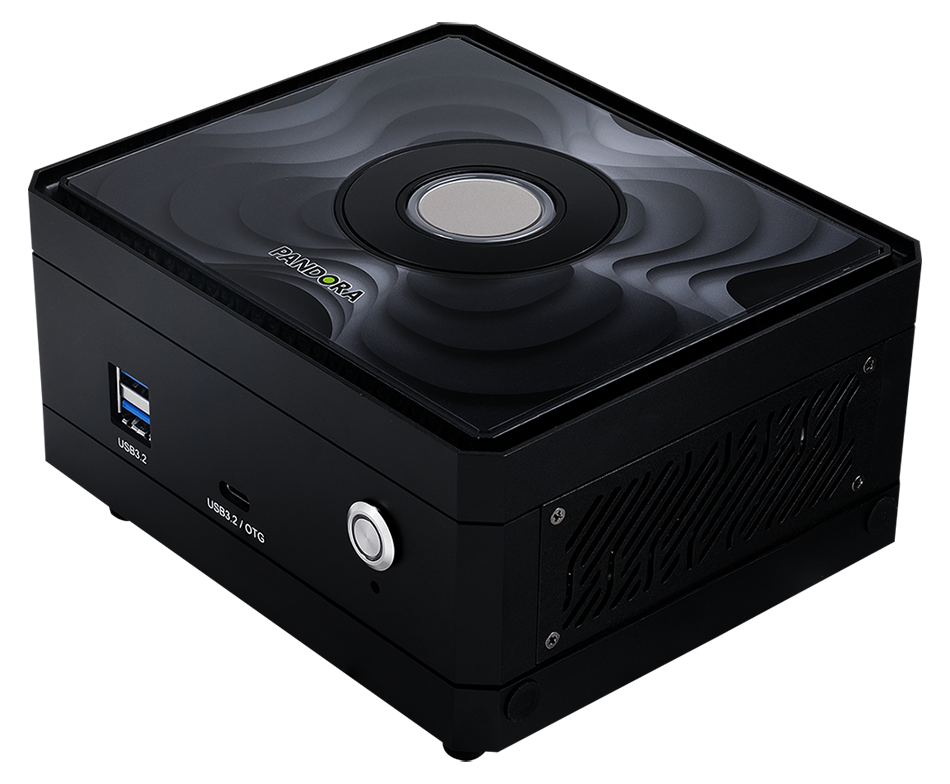

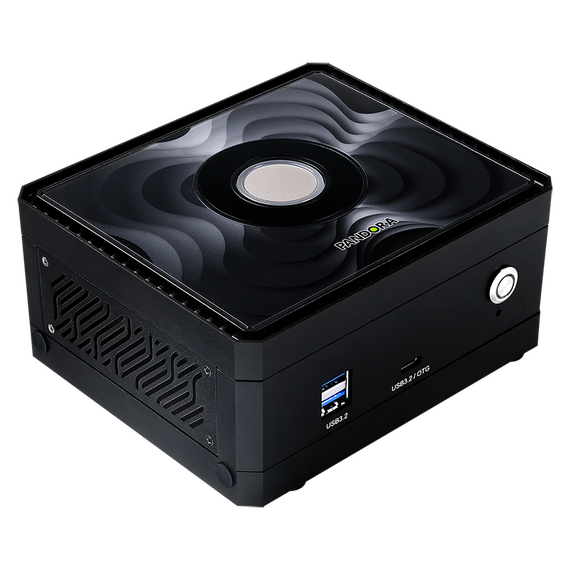

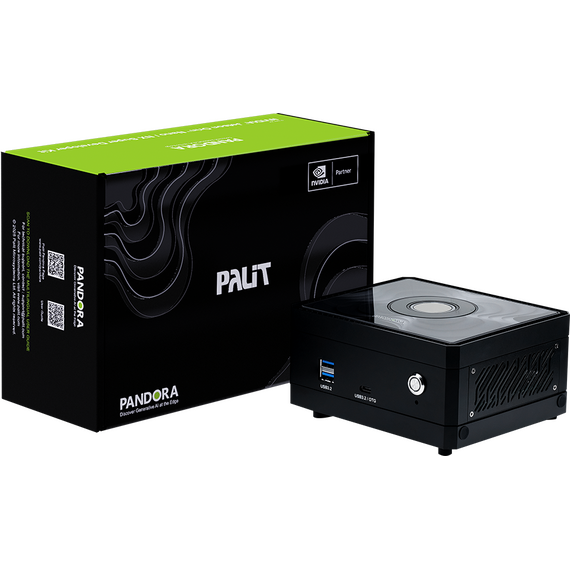

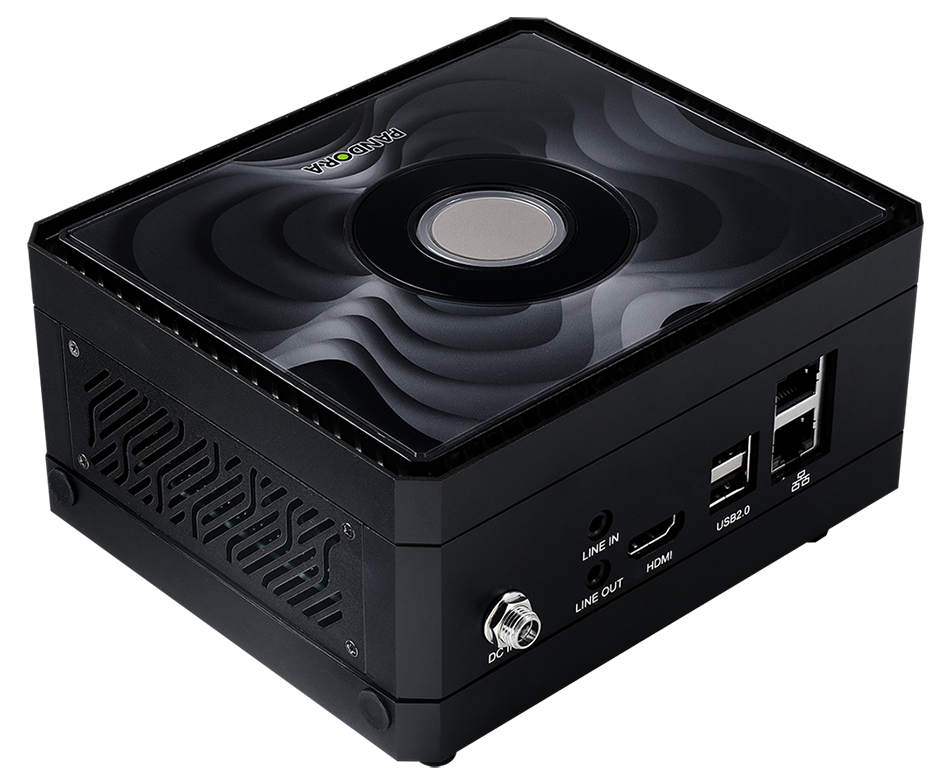

PALIT PANDORA JETSON NANO 8GB
R73359
Описание
| Vendor_url | https://www.palit.com/pandora/nano/index.php?tab=overview&lang=en |
| Manufacturer | Palit |
| Part number / Product code | A003FV1P1 |
| Model | Pandora NVIDIA Jetson Orin Nano Super |
| Mainboard | Pandora NVIDIA Jetson Orin Nano Super |
| Chipset | NVIDIA Jetson Orin Nano 8GB Super SoM |
| CPU model | 6-Core Arm Cortex-A78AE v8.2 64-bit |
| Memory size | 8 GB |
| Memory type | LPDDR5 |
| Memory | 8 GB LPDDR5, 128-bit, 102 GB/s Bandwidth |
| Graphics | NVIDIA Ampere GPU; 1024 CUDA Cores; 32 Tensor Cores |
| SSD | 128 GB Pre-installed M.2 NVMe SSD; Additional NVMe Storage Supported |
| Disk specifications | M.2 2280 PCIe Gen4 ×2 (Pre-installed SSD); Additional M.2 PCIe Gen4 ×4 Slot |
| Display | External Display via HDMI 1.4 |

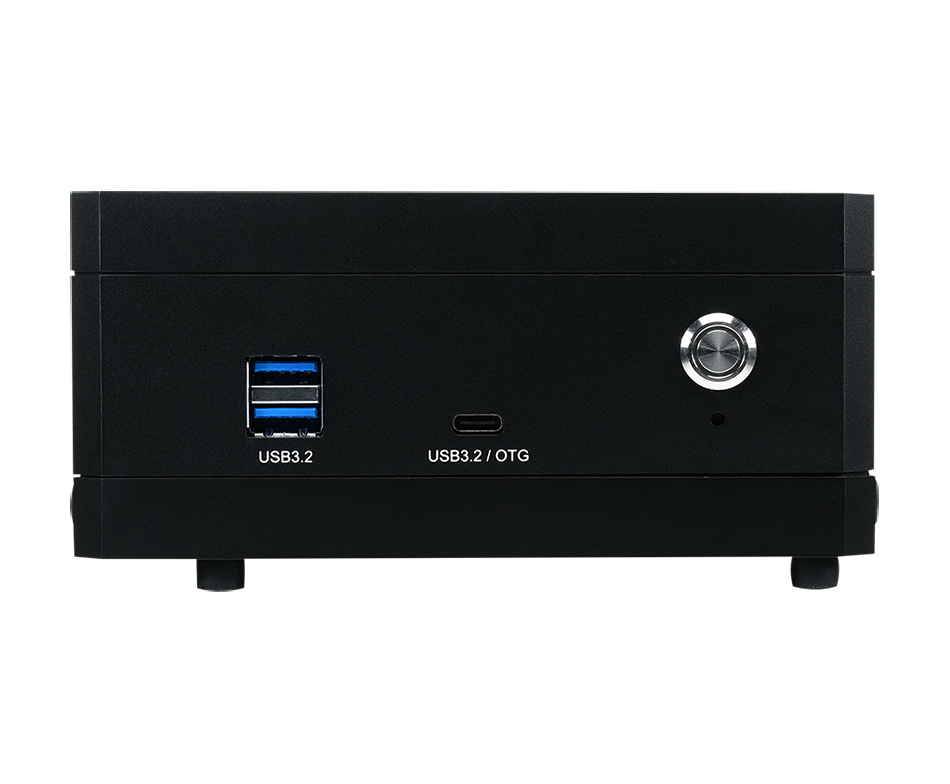

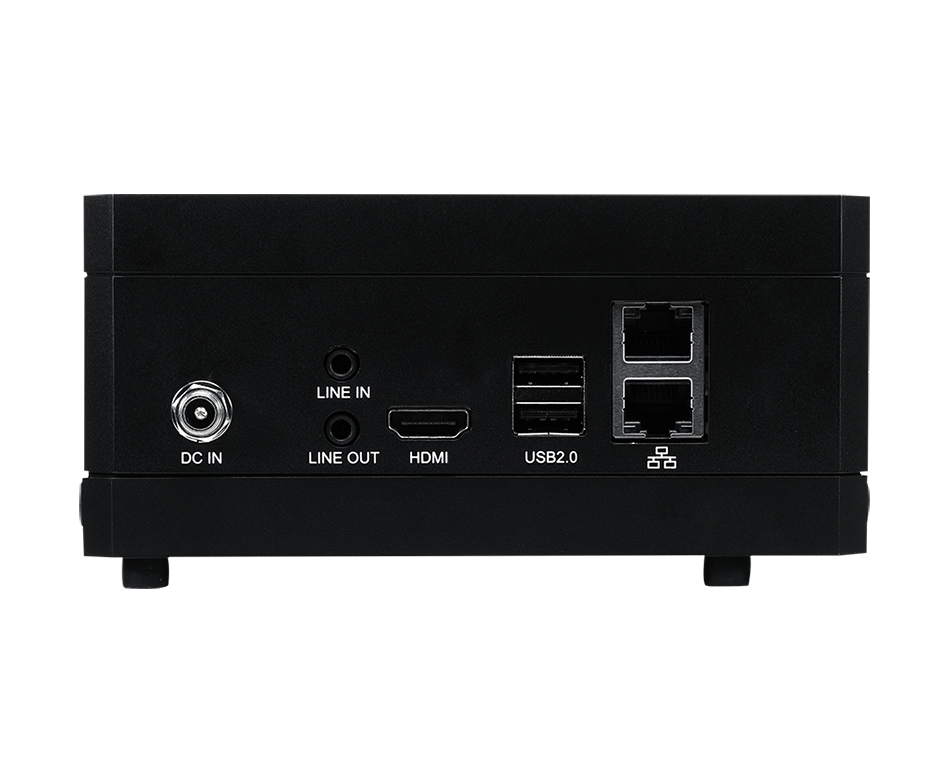

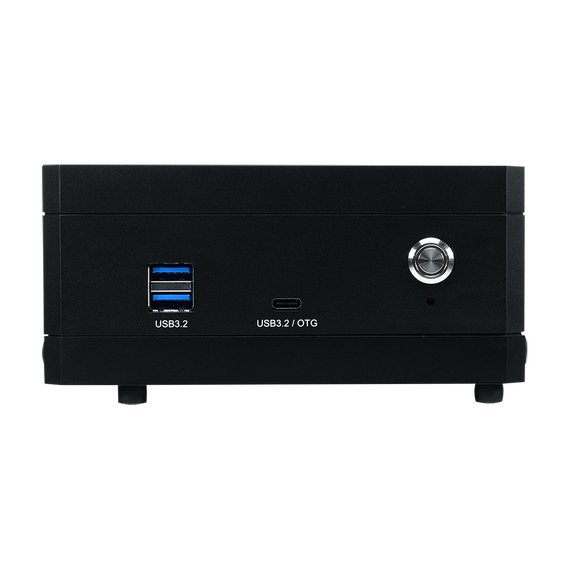

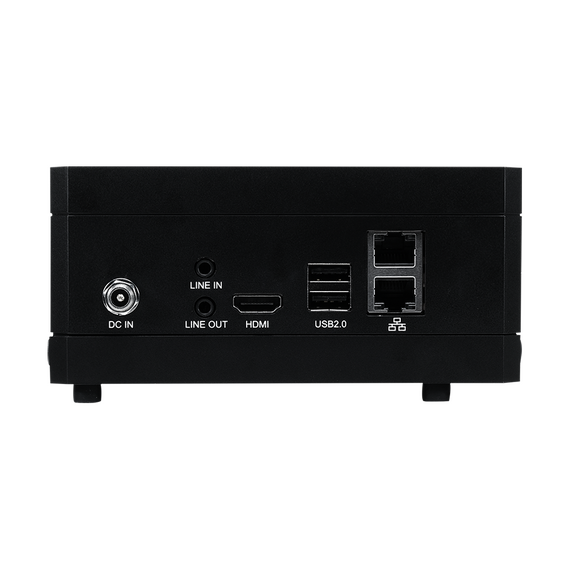

| I/O | 1 × HDMI 1.4; 2 × USB 3.2 Gen 2 Type-A; 1 × USB 3.2 Gen 2 Type-C (OTG); 2 × USB 2.0 Type-A; 2 × RJ45; 2 × 3.5 mm Audio Jacks |
| Interfaces/Ports | HDMI; USB-A; USB-C; Gigabit Ethernet; Audio In/Out; MIPI CSI-2; GPIO; UART; I2C; SPI; CAN Bus |

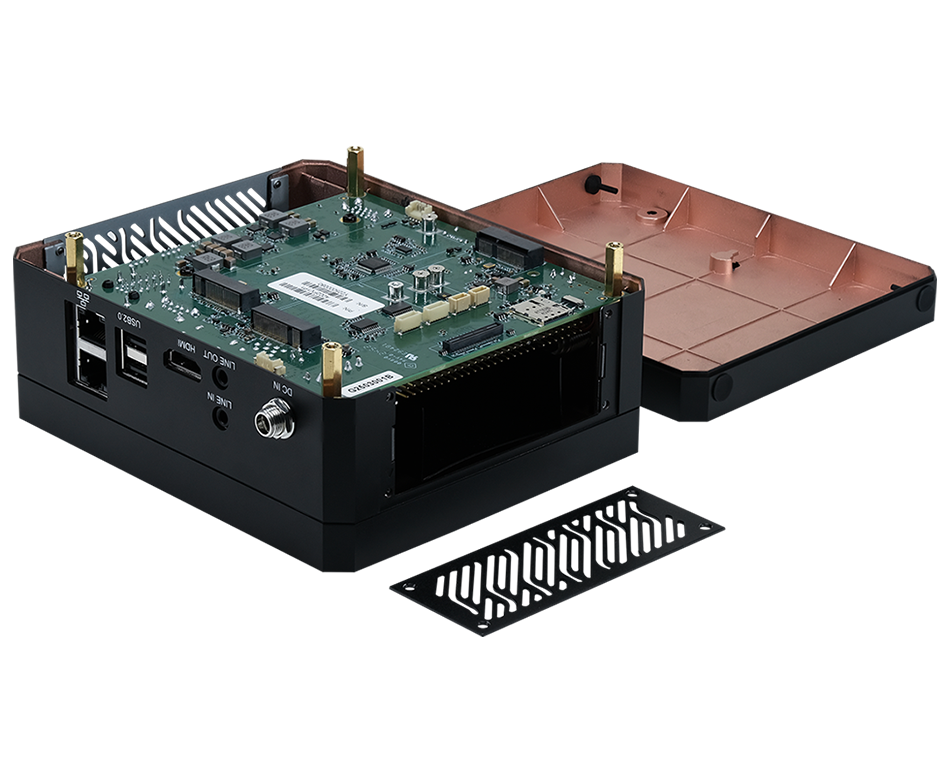

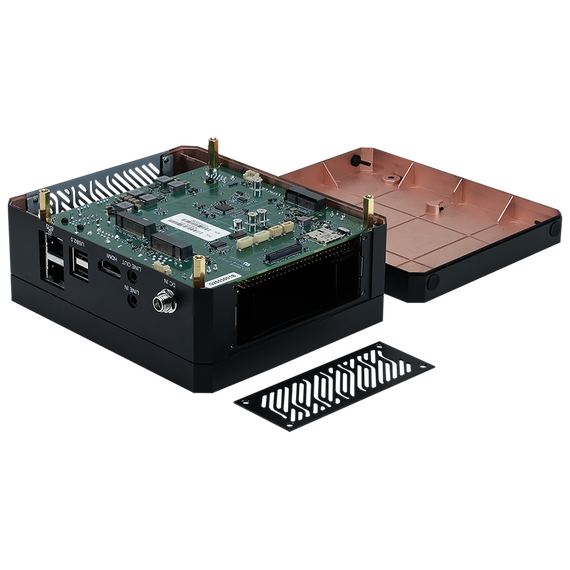

| Expansion slots | 1×M.2 2280 M Key PCIe Gen4×2 Slot ( with Pre-Installed 128GB SSD ); 1×M.2 2280/3080 M Key PCIe Gen4×4 Slot, Support SSD or Video Capture Cards; 1×M.2 2230 E Key PCIe Gen4×1+USB2.0 Slot, Support WiFi Module.; 1×M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module. |
| LAN | 2 × Gigabit Ethernet (10/100/1000 Mbps) |
| Wireless | Optional via M.2 Wi-Fi Module |
| Bluetooth | Optional via Compatible Wireless Module |
| Built-in devices | NVIDIA Jetson Orin Nano SoM; 128 GB SSD; Rechargeable RTC Battery |
| Camera | External MIPI CSI-2 Camera Support; 8 Lanes |
| Audio | 1 × 3.5 mm Line In; 1 × 3.5 mm Line Out; I2S Interface |
| Power supply | DC Input: 9–36 V |
| Features | Up to 67 TOPS AI Performance; NVIDIA Ampere GPU; Edge AI Computing; 4 × M.2 Expansion Slots |
| Mechanical design | Compact Embedded AI Computer |
| Other | 40-Pin Expansion Header; 14-Pin Header; Nano SIM Slot; Firmware Upgradable; Operating Temperature: 0–60°C with Airflow; Storage Temperature: -20–80°C |
| Weight | 470 g |
| Dimensions | 145 × 123 × 66 mm |
