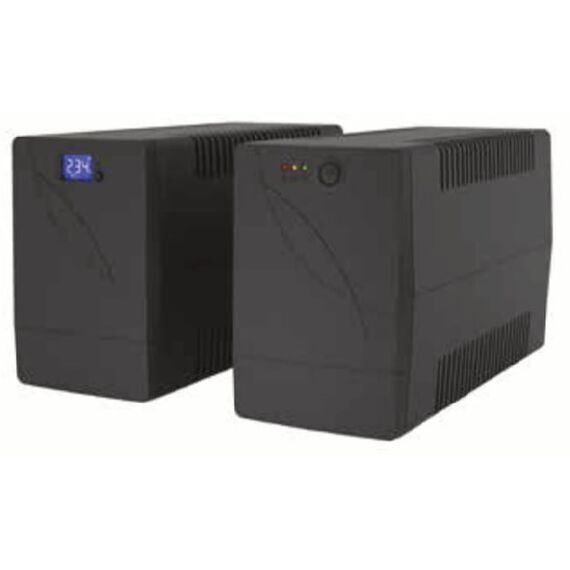

GUARDIAN 1000AP 1KVA/AVR
R42412
Описание
| Manufacturer | INFORM |
| Mnfr Part # | GUARDIAN 1000AP |
| Model | 1000AP 1KVA/AVR |
| Capacity | 1000 VA |
| Type | Line-interactive |
| Input | Voltage:230V or 220V ± 25%; Frequency:50 or 60 Hz ± 5Hz (auto sensing). |
| Output | Power Factor:0.6; Voltage (On battery):230V or 220V ± 10%; Waveform (On battery):Simulated Sinewave; Frequency (On battery):50 or 60 Hz ± 1Hz; Voltage Regulation (AVR):AVR automatically increase output voltage 15% above input voltage if -9% to-25% of nominal AVR automatically decrease output voltage 13% below input voltage if +9% to+25% of nominal; Transfer Time:4 ms; IEC Version:6pcs IEC C13; Schuko Version:2pcs Schuko . |
| Interface | Interface (Communication Ports):RS232 Standard; Software:Standard. |
| Display | LED Display:4 LEDs for Line, Back up, fault and Overload. |
| Battery | Type:Maintenance-free lead acid batteries; Recharge Time: 6-8 hours (to 90% of full capacity); Voltage:24VDC; Quantity:2x12V 7Ah. |
| Environment | Protection class: IP20; Protection:Short Circuit, Overload, Noise Suppression, Spike, Battery Overdischarge, Modem/Network (AP Models only); Operating Temperature: 0-40 °C; Humidity: 0-95% non-condensing; Audible Noise at 1m: <40dBA . |
| Standarts | EN 62040-1-1 (safety); EN62040-2 (EMC) |
| Dimensions | 146 x 350 x 160mm |
| Warranty | 24 months, 12 months battery |
