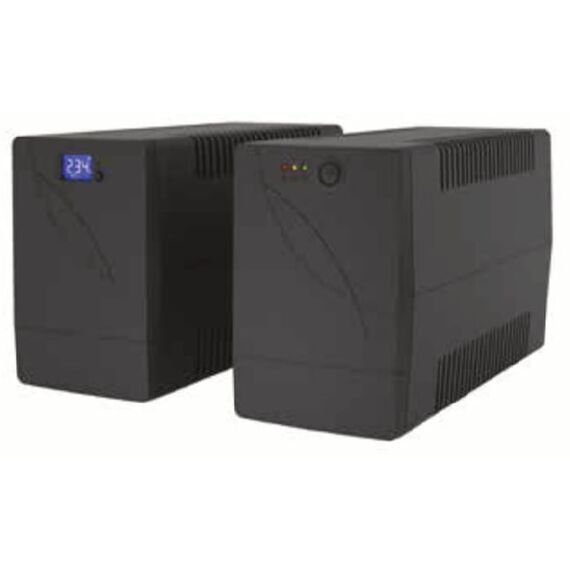

GUARDIAN 800AP 800VA/AVR
R42103
Описание
| Manufacturer | INFORM |
| Mnfr Part # | GUARDIAN 800AP |
| Model | 800AP 800VA/AVR |
| Capacity | 800 VA |
| Type | Line-interactive |
| Input | Voltage: 220V or 230V; Input Voltage Range: 172 to 286VAC; Frequency: 50 or 60 Hz (auto sensing). |
| Output | Power Factor: 0.6; Voltage (On battery): 220V or 230V ± 1t0%; Waveform (On battery): Simulated Sinewave; Frequency (On battery): 50 or 60 Hz ± 1Hz; Voltage Regulation (AVR) :AVR automatically increases output voltage 15% above input voltage if -10% to -26% of nominal. AVR automatically decreases output voltage 15% below input voltage if +10% to +22% of nominal; Transfer Time: 2 - 6 ms; Outlets: 1 pc Schuko & 1 pc IEC C13. |
| Interface | USB Port (only AP models); Software Available with AP models only |
| Display | LED Display: Fault, Battery Mode, AC Mode; LCD Display (optional): Input & Output Voltage values, AC mode / Load Level / Battery Capacity Indicators. |
| Battery | Type: Maintenance-free lead acid batteries; Recharge Time: 6 hours ( to 90% of full capacity); Voltage: 12VDC; Quantity:1x12V 9Ah. |
| Environment | Operating Temperature: 0-40 °C; Humidity: 0 to 95% non-condensing; Audible Noise at 1m: <40dBA; Protection class: IP20. |
| Standarts | EN 62040-1-1 (safety), EN 62040-2(EMC) |
| Dimensions | 101x298x142 mm |
| Warranty | 24 months, 12 months battery |
